| Plug (Header) Size |
Dimensions (Inches) |
| D |
E |
F |
G |
| 1" NPT |
1 1/2" |
1 1/8" |
.315" |
5/8" |
| 1 1/4" NPT |
1 3/4" |
1 3/8" |
.315" |
1/2" |
| 2" NPT |
2 3/4" |
2 1/4" |
.430" |
1 1/16" |
| Single Phase - One Rod |
Therm-Coil Drawing
Number |
Therm-Coil
Model Number |
Watts |
Volts |
Dimensions (Inches) |
Approximate
Wt. Lbs |
Brass Plug
(Header) Size |
Replacement Element
Model Number |
| A |
B |
C |
| |
HAQ-1011 |
1000 |
120 |
10 5/16" |
6 9/16" |
5 3/4" |
|
1 1/4" NPT |
IQ-1011 |
| |
HAQ-1511 |
1500 |
120 |
15 9/16" |
11 13/16" |
11" |
|
1 1/4" NPT |
IQ-1511 |
| |
HAQ-1541 |
1500 |
240 |
15 9/16" |
11 13/16" |
11" |
|
1 1/4" NPT |
IQ-1541 |
| The above elements are self-regulating with built in themal cut-out for over temperature protection |
|
| Single Phase - One Rod - 1 1/4" NPT Brass Screw Plug |
Therm-Coil Drawing
Number |
Therm-Coil
Model Number |
Watts |
Volts |
Dimensions (Inches) |
Approx.
Wt. Lbs. |
| A |
B |
C |
| |
IQ-1011 |
1000 |
120 |
9 5/16" |
6 9/16" |
5 3/4" |
2.5 |
| |
IQ-1511 |
1500 |
120 |
14 9/16" |
11 13/16" |
11" |
2.5 |
| |
IQ-1541 |
1500 |
240 |
14 9/16" |
11 13/16" |
11" |
2.5 |
|
| Plug (Header) Size |
Dimensions (Inches) |
| D |
E |
F |
G |
| 1" NPT |
1 1/2" |
1 1/8" |
.315" |
5/8" |
| 1 1/4" NPT |
1 3/4" |
1 3/8" |
.315" |
1/2" |
| 2" NPT |
2 3/4" |
2 1/4" |
.430" |
1 1/16" |
| Three Rods - 2" NPT Brass Screw Plug (Header) |
Therm-Coil Drawing
Number |
Therm-Coil
Model Number |
Watts |
Volts |
Phase |
Dimensions (Inches) |
Approximate
Wt. Lbs |
Replacement Element
Model Number |
| A |
B |
C |
| |
HA-3021 |
3000 |
208 |
1 |
15 7/8" |
11 9/16" |
10 1/2" |
9.0 |
I-3021-W |
| |
HA-3023 |
3000 |
208 |
3 |
15 7/8" |
11 9/16" |
10 1/2" |
9.0 |
I-3023-WI |
| |
HA-3041 |
3000 |
240 |
1 |
15 7/8" |
11 9/16" |
10 1/2" |
9.0 |
I-3041-W |
| |
HA-3043 |
3000 |
240 |
3 |
15 7/8" |
11 9/16" |
10 1/2" |
9.0 |
I-3043-W |
| |
HA-3053 * |
3000 |
480 |
3 |
15 7/8" |
11 9/16" |
10 1/2" |
9.0 |
I-3053-W |
| |
HA-5021 |
5000 |
208 |
1 |
18 3/8" |
14 1/16" |
13" |
9.0 |
I-5021-W |
| |
HA-5023 |
5000 |
208 |
3 |
18 3/8" |
14 1/16" |
13" |
9.0 |
I-5023-W |
| |
HA-5041 |
5000 |
240 |
1 |
18 3/8" |
14 1/16" |
13" |
9.0 |
I-5041-W |
| |
HA-5043 |
5000 |
240 |
3 |
18 3/8" |
14 1/16" |
13" |
9.0 |
I-5043-W |
| |
HA-5053 * |
5000 |
480 |
3 |
18 3/8" |
14 1/16" |
13" |
9.0 |
I-5053-W |
| * Indicates Units Requiring A Magnetic Contactor |
|

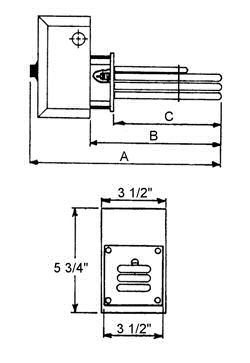

| Three Rods - 3 1/2" Square Flange |
Therm-Coil Drawing
Number |
Therm-Coil
Model Number |
Watts |
Volts |
Phase |
Dimensions (Inches) |
Approximate
Wt. Lbs |
Replacement Element
Model Number |
| A |
B |
C |
| |
FHA-5021 |
5000 |
208 |
1 |
18 1/4" |
15 1/4" |
13 1/2" |
9.0 |
FA-5021-W |
| |
FHA-5023 |
5000 |
208 |
3 |
18 1/4" |
15 1/4" |
13 1/2" |
9.0 |
FA-5023-W |
| |
FHA-5041 |
5000 |
240 |
1 |
18 1/4" |
15 1/4" |
13 1/2" |
9.0 |
FA-5041-W |
| |
FHA-5043 |
5000 |
240 |
3 |
18 1/4" |
15 1/4" |
13 1/2" |
9.0 |
FA-5043-W |
| |
FHA-5053 * |
5000 |
480 |
3 |
18 1/4" |
15 1/4" |
13 1/2" |
9.0 |
FA-5053-W |
| * Indicates Units Requiring A Magnetic Contactor |
|
