Alloy Sheath Immersion Element
With 2-1/2" N.P.T. Brass Screw Plug-Silver Brazed
For Corrosive Water
- 50 Watts Per Square Inch
- Regulated (Double Pole Stat)

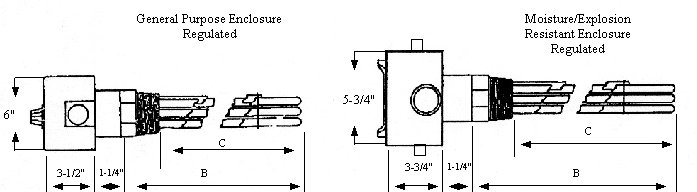

| KW | Volts | Phase | Dimensions (Inches) |
Regulated (60°-250°F) | ||
| General Purpose Enclosure |
Moisture/Explosion Resistant Enclosure |
|||||
| B | C | |||||
| 10 10 |
240 480 |
3 3 |
27 27 |
25 25 |
DAA-10043 DAA-10053 |
DAA-10043WXP DAA-10053WXP |
| 12 12 |
240 480 |
3 3 |
35 35 |
33 33 |
DAA-12043 DAA-12053 |
DAA-12043WXP DAA-12053WXP |
| 15 15 |
240 480 |
3 3 |
42 42 |
40 40 |
DAA-15043 DAA-15053 |
DAA-15043WXP DAA-15053WXP |
| 18 18 |
240 480 |
3 3 |
50 50 |
48 48 |
DAA-18043 DAA-18053 |
DAA-18043WXP DAA-18053WXP |
- Standard temperature range is 60°-250°F.
- For temperature range of 30°-110°F: add the suffix T1
- For temperature range of 200°-550°F: add the suffix T5
- For stainless steel header instead of brass header: add the suffix SSN. Consult Factory.
- Regulated models require a magnetic contactor for the following conditions:
- Single phase ampere rating over 30 amps
- All 208 and 240 volt, 3 phase applications.
- All 480V, single and three phase applications.
- 208V models not shown are available upon request. Consult factory.
- 240V units may be derated for 208V usage with a 25% reduction in wattage.
