Alloy Sheath Immersion Element
With 2-1/2" N.P.T. Brass Screw Plug-Silver Brazed
For Corrosive Water
- 50 Watts Per Square Inch
- With 3/8" ID Stainless Steel Thermowell
- Regulated (Double Pole Stat)

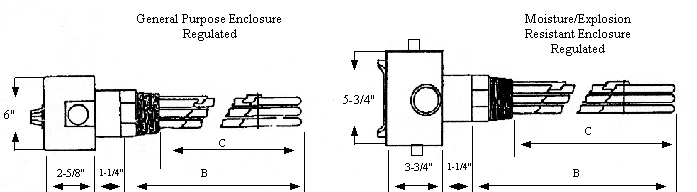

| KW | Volts | Phase | Dimensions (Inches) |
Regulated (60°-250°F) | ||
| General Purpose Enclosure |
Moisture/Explosion Resistant Enclosure |
|||||
| B | C | |||||
| 3 3 |
240 240 |
1 3 |
11 11 |
9 9 |
DAA-3041 DAA-3043 |
DAA-3041WXP DAA-3043WXP |
| 3 3 |
480 480 |
1 3 |
11 11 |
9 9 |
DAA-3051 DAA-3053 |
DAA-3051WXP DAA-3053WXP |
| 5 5 |
240 240 |
1 3 |
15 15 |
13 13 |
DAA-5041 DAA-5043 |
DAA-5041WXP DAA-5043WXP |
| 5 5 |
480 480 |
1 3 |
15 15 |
13 13 |
DAA-5051 DAA-5053 |
DAA-5051WXP DAA-5053WXP |
| 7.5 7.5 |
240 240 |
1 3 |
22 22 |
20 20 |
DAA-7541 DAA-7543 |
DAA-7541WXP DAA-7543WXP |
| 7.5 7.5 |
480 480 |
1 3 |
22 22 |
20 20 |
DAA-7551 DAA-7553 |
DAA-7551WXP DAA-7553WXP |
- Standard temperature range is 60°-250°F.
- For temperature range of 30°-110°F: add the suffix T1
- For temperature range of 200°-550°F: add the suffix T5
- For stainless steel header instead of brass header: add the suffix SSN. Consult Factory.
- Regulated models require a magnetic contactor for the following conditions:
- Single phase ampere rating over 30 amps
- All 208 and 240 volt, 3 phase applications.
- All 480V, single and three phase applications.
- 208V models not shown are available upon request. Consult factory.
- 240V units may be derated for 208V usage with a 25% reduction in wattage.
