Copper Sheath Immersion Element
With 1" N.P.T. Brass Screw Plug-Silver Brazed
- 60 Watts Per Square Inch
- With 3/8" ID Copper Thermowell
- Regulated (Single Pole Stat) and Non-Regulated

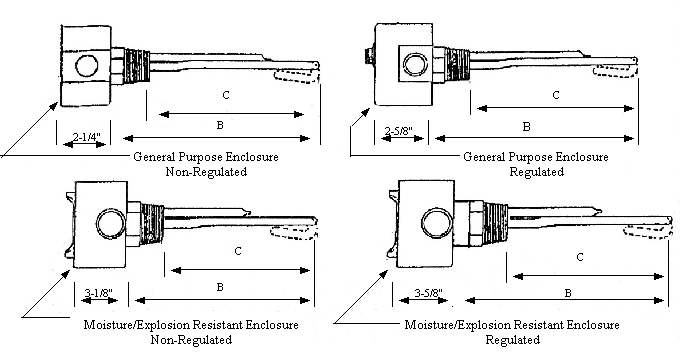

| KW | Volts | Phase | Dimensions (Inches) |
Non-Regulated | Regulated (60°-250°F) | |||
| General Purpose Enclosure |
Moisture/Explosion Resistant Enclosure |
General Purpose Enclosure |
Moisture/Explosion Resistant Enclosure |
|||||
| B | C | |||||||
| 1 1 |
120 240 |
1 1 |
7-5/8 7-5/8 |
6-1/4 6-1/4 |
CO-1011 CO-1041 |
CO-1011WXP CO-1041WXP |
ECO-1011 ECO-1041 |
ECO-1011WXP ECO-1041WXP |
| 1.5 1.5 |
120 240 |
1 1 |
9-5/8 9-5/8 |
8-1/4 8-1/4 |
CO-1511 CO-1541 |
CO-1511WXP CO-1541WXP |
ECO-1511 ECO-1541 |
ECO-1511WXP ECO-1541WXP |
| 2 2 |
120 240 |
1 1 |
11-7/8 11-7/8 |
10-1/2 10-1/2 |
CO-2011 CO-2041 |
CO-2011WXP CO-2041WXP |
ECO-2011 ECO-2041 |
ECO-2011WXP ECO-2041WXP |
| 3 3 |
120 240 |
1 1 |
17-3/8 17-3/8 |
16 16 |
CO-3011 CO-3041 |
CO-3011WXP CO-3041WXP |
ECO-3011 ECO-3041 |
ECO-3011WXP ECO-3041WXP |
- Standard temperature range is 60°-250°F.
- For temperature range of 30°-110°F: add the suffix T1
- For Temperature range 200°-550°F: add the suffix T5
- For stainless steel header –instead of brass header: add the suffix SSN. Consult Factory.
- Regulated models require a magnetic contactor for the following conditions:
- All 120-277 volt, single & three phase applications over 30 amps.
- All 480 volt, single and three phase applications over 21 amps.
- 208V units not shown are available upon request. Consult Factory.
- 240V units may be derated for 208V usage with a 25% reduction in wattage.
