Alloy Sheath Immersion Element
With 2" N.P.T. Brass Screw Plug-Silver Brazed
For Corrosive Water
- 50 Watts Per Square Inch
- With 3/8" ID Stainless Steel Thermowell
- Regulated (Double Pole Stat)

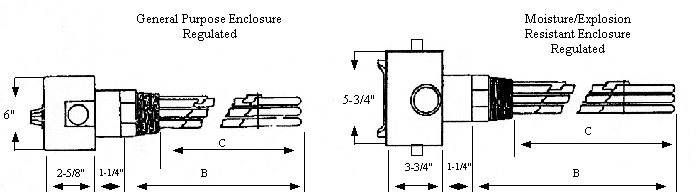

| KW | Volts | Phase | Dimensions (Inches) |
Regulated (60°-250°F) | ||
| General Purpose Enclosure |
Moisture/Explosion Resistant Enclosure |
|||||
| B | C | |||||
| 7.5 7.5 |
240 240 |
1 3 |
22 22 |
20 20 |
DA-7541 DA-7543 |
DA-7541-WXP DA-7543-WXP |
| 7.5 7.5 |
480 480 |
1 3 |
22 22 |
20 20 |
DA-7551 DA-7553 |
DA-7551-WXP DA-7553-WXP |
| 10 10 |
240 480 |
3 3 |
27 27 |
25 25 |
DA-10043 DA-10053 |
DA-10043-WXP DA-10053-WXP |
| 12 12 |
240 480 |
3 3 |
33 33 |
31 31 |
DA-12043 DA-12053 |
DA-12043-WXP DA-12053-WXP |
| 15 15 |
240 480 |
3 3 |
39-1/2 39-1/2 |
37-1/2 37-1/2 |
DA-15043 DA-15053 |
DA-15043-WXP DA-15053-WXP |
| 18 18 |
240 480 |
3 3 |
49-1/2 49-1/2 |
47-1/2 47-1/2 |
DA-18043 DA-18053 |
DA-18043-WXP DA-18053-WXP |
- Standard temperature range is 60°-250°F.
- For temperature range of 30°-110°F: add the suffix T1
- For Temperature range 200°-550°F: add the suffix T5
- For stainless steel header –instead of brass header: add the suffix SSN. Consult Factory.
- Regulated models require a magnetic contactor for the following conditions:
- All 120-277 volt, single & three phase applications over 30 amps.
- All 480 volt, single and three phase applications over 21 amps.
- 208V units not shown are available upon request. Consult Factory.
- 240V units may be derated for 208V usage with a 25% reduction in wattage.
