Alloy Sheath Immersion Element
With 2" N.P.T. Brass Screw Plug-Silver Brazed
For Corrosive Water
- 50 Watts Per Square Inch
- With 3/8" ID Stainless Steel Thermowell
- Regulated (Double Pole Stat)

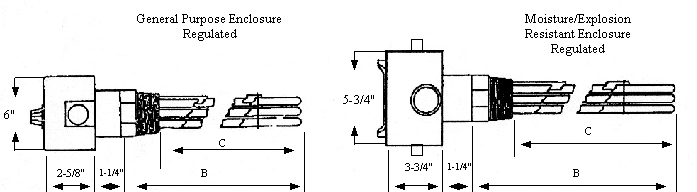

| KW | Volts | Phase | Dimensions (Inches) |
Regulated (60°-250°F) | ||
| General Purpose Enclosure |
Moisture/Explosion Resistant Enclosure |
|||||
| B | C | |||||
| 2 2 |
240 240 |
1 3 |
10 10 |
8 8 |
DA-2041 DA-2043 |
DA-2041-WXP DA-2043-WXP |
| 2 2 |
480 480 |
1 3 |
10 10 |
8 8 |
DA-2051 DA-2053 |
DA-2051-WXP DA-2053-WXP |
| 3 3 |
240 240 |
1 3 |
12 1/2 12 1/2 |
10 1/2 10 1/2 |
DA-3041 DA-3043 |
DA-3041-WXP DA-3043-WXP |
| 3 3 |
480 480 |
1 3 |
12 1/2 12 1/2 |
10 1/2 10 1/2 |
DA-3051 DA-3053 |
DA-3051-WXP DA-3053-WXP |
| 5 5 |
208 208 |
1 3 |
15 15 |
13 13 |
DA-5021 DA-5023 |
DA-5021-WXP DA-5023-WXP |
| 5 5 |
240 240 |
1 3 |
15 15 |
13 13 |
DA-5041 DA-5043 |
DA-5041-WXP DA-5043-WXP |
| 5 5 |
480 480 |
1 3 |
15 15 |
13 13 |
DA-5051 DA-5053 |
DA-5051-WXP DA-5053-WXP |
- Standard temperature range is 60°-250°F.
- For temperature range of 30°-110°F: add the suffix T1
- For Temperature range 200°-550°F: add the suffix T5
- For stainless steel header –instead of brass header: add the suffix SSN. Consult Factory.
- Regulated models require a magnetic contactor for the following conditions:
- All 120-277 volt, single & three phase applications over 30 amps.
- All 480 volt, single and three phase applications over 21 amps.
- 208V units not shown are available upon request. Consult Factory.
- 240V units may be derated for 208V usage with a 25% reduction in wattage.
