Alloy Sheath Immersion Element
With 2-1/2" N.P.T. Brass Screw Plug-Silver Brazed
- 50 Watts Per Square Inch
- With 3/8" ID Stainless Steel Thermowell
- Regulated (Single Pole Stat) and Non-Regulated

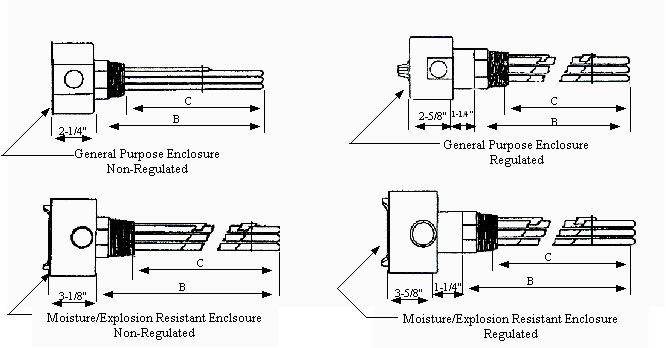

| KW | Volts | Phase | Dimensions (Inches) |
Non-Regulated | Regulated (60°-250°F) | |||
| General Purpose Enclosure |
Moisture/Explosion Resistant Enclosure |
General Purpose Enclosure |
Moisture/Explosion Resistant Enclosure |
|||||
| B | C | |||||||
| 3 3 |
240 240 |
1 3 |
11 11 |
9 9 |
AA-3041 AA-3043 |
AA-3041-WXP AA-3043-WXP |
EAA-3041 EAA-3043 |
EAA-3041-WXP EAA-3043-WXP |
| 3 3 |
480 480 |
1 3 |
11 11 |
9 9 |
AA-3051 AA-3053 |
AA-3051-WXP AA-3053-WXP |
EAA-3051 EAA-3053 |
EAA-3051-WXP EAA-3053-WXP |
| 5 5 |
240 240 |
1 3 |
15 15 |
13 13 |
AA-5041 AA-5043 |
AA-5041-WXP AA-5043-WXP |
EAA-5041 EAA-5043 |
EAA-5041-WXP EAA-5043-WXP |
| 5 5 |
480 480 |
1 3 |
15 15 |
13 13 |
AA-5051 AA-5053 |
AA-5051-WXP AA-5053-WXP |
EAA-5051 EAA-5053 |
EAA-5051-WXP EAA-5053-WXP |
| 7.5 7.5 |
240 240 |
1 3 |
22 22 |
20 20 |
AA-7541 AA-7543 |
AA-7541-WXP AA-7543-WXP |
EAA-7541 EAA-7543 |
EAA-7541-WXP EAA-7543-WXP |
| 7.5 7.5 |
480 480 |
1 3 |
22 22 |
20 20 |
AA-7551 AA-7553 |
AA-7551-WXP AA-7553-WXP |
EAA-7551 EAA-7553 |
EAA-7551-WXP EAA-7553-WXP |
- Standard temperature range is 60°-250°F.
- For temperature range of 30°-110°F: add the suffix T1
- For temperature range 200°-550°F: add the suffix T5
- For stainless steel header –instead of brass header: add the suffix SSN. Consult Factory.
- Regulated models require a magnetic contactor for the following conditions:
- All 120-277 volt, single & three phase applications over 30 amps.
- All 480 volt, single and three phase applications over 21 amps.
- 208V units not shown are available upon request. Consult Factory.
- 240V units may be derated for 208V usage with a 25% reduction in wattage.
