Alloy Sheath Immersion Element
With 2" N.P.T. Brass Screw Plug-Silver Brazed
- 50 Watts Per Square Inch
- 3/8" ID Stainless Steel Thermowell
- Regulated (Single Pole Stat) and Non-Regulated
| KW | Volts | Phase | Dimensions (Inches) |
Non-Regulated | Regulated (60°-250°F) | |||

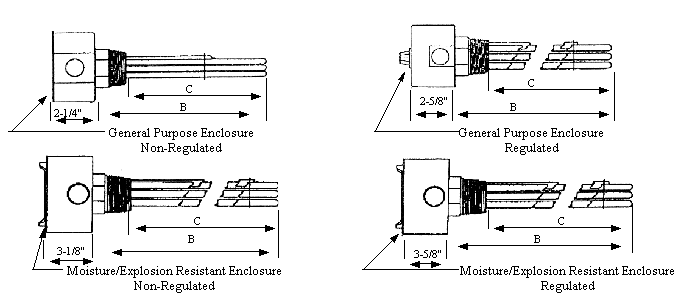

| General Purpose Enclosure |
Moisture/Explosion Resistant Enclosure |
General Purpose Enclosure |
Moisture/Explosion Resistant Enclosure |
|||||
| B | C | |||||||
| 7.5 7.5 |
240 240 |
1 3 |
22 22 |
20 20 |
A-7541 A-7543 |
A-7541-WXP A-7543-WXP |
EA-7541 EA-7543 |
EA-7541-WXP EA-7543-WXP |
| 7.5 7.5 |
480 480 |
1 3 |
22 22 |
20 20 |
A-7551 A-7553 |
A-7551-WXP A-7553-WXP |
EA-7551 EA-7553 |
EA-7551-WXP EA-7553-WXP |
| 10 10 |
240 480 |
3 3 |
27 27 |
25 25 |
A-10043 A-10053 |
A-10043-WXP A-10053-WXP |
EA-10043 EA-10053 |
EA-10043-WXP EA-10053-WXP |
| 12 12 |
240 480 |
3 3 |
33 33 |
31 31 |
A-12043 A-12053 |
A-12043-WXP A-12053-WXP |
EA-12043 EA-12053 |
EA-12043-WXP EA-12053-WXP |
| 15 15 |
240 480 |
3 3 |
39-1/2 39-1/2 |
37-1/2 37-1/2 |
A-15043 A-15053 |
A-15043-WXP A-15053-WXP |
EA-15043 EA-15053 |
EA-15043-WXP EA-15053-WXP |
| 18 18 |
240 480 |
3 3 |
49-1/2 49-1/2 |
47-1/2 47-1/2 |
A-18043 A-18053 |
A-18043-WXP A-18053-WXP |
EA-18043 EA-18053 |
EA-18043-WXP EA-18053-WXP |
- Standard temperature range is 60°-250°F.
- For temperature range of 30°-110°F: add the suffix T1
- For temperature range of 200°-550°F: add the suffix T5
- For stainless steel header instead of brass header: add the suffix SSN. Consult Factory.
- Regulated models require a magnetic contactor for the following conditions:
- Single phase ampere rating over 30 amps
- All 208 and 240 volt, 3 phase applications.
- All 480V, single and three phase applications.
- 208V models not shown are available upon request. Consult factory.
- 240V units may be derated for 208V usage with a 25% reduction in wattage.
