Alloy Sheath Immersion Element
With 2" N.P.T. Brass Screw Plug-Silver Brazed
- 50 Watts Per Square Inch
- 3/8" ID Stainless Steel Thermowell
- Regulated (Single Pole Stat) and Non-Regulated

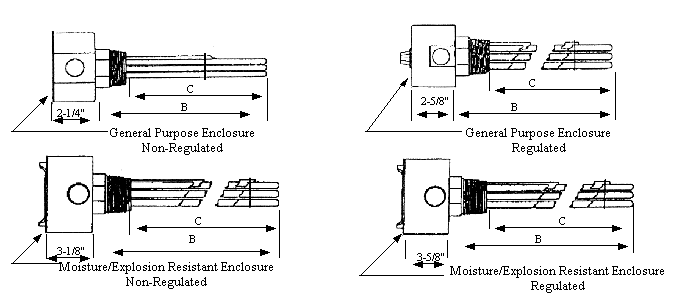

| KW | Volts | Phase | Dimensions (Inches) |
Non-Regulated | Regulated (60°-250°F) | |||
| General Purpose Enclosure |
Moisture/Explosion Resistant Enclosure |
General Purpose Enclosure |
Moisture/Explosion Resistant Enclosure |
|||||
| B | C | |||||||
| 2 2 |
240 240 |
1 3 |
10 10 |
8 8 |
A-2041 A-2043 |
A-2041-WXP A-2043-WXP |
EA-2041 EA-2043 |
EA-2041-WXP EA-2043-WXP |
| 2 2 |
480 480 |
1 3 |
10 10 |
8 8 |
A-2051 A-2053 |
A-2051-WXP A-2053-WXP |
EA-2051 EA-2053 |
EA-2051-WXP EA-2053-WXP |
| 3 3 |
240 240 |
1 3 |
12-1/2 12-1/2 |
10-1/2 10-1/2 |
A-3041 A-3043 |
A-3041-WXP A-3043-WXP |
EA-3041 EA-3043 |
EA-3041-WXP EA-3043-WXP |
| 3 3 |
480 480 |
1 3 |
12-1/2 12-1/2 |
10-1/2 10-1/2 |
A-3051 A-3053 |
A-3051-WXP A-3053-WXP |
EA-3051 EA-3053 |
EA-3051-WXP EA-3053-WXP |
| 5 5 |
208 208 |
1 3 |
15 15 |
13 13 |
A-5021 A-5023 |
A-5021-WXP A-5023-WXP |
EA-5021 EA-5023 |
EA-5021-WXP EA-5023-WXP |
| 5 5 |
240 240 |
1 3 |
15 15 |
13 13 |
A-5041 A-5043 |
A-5041-WXP A-5043-WXP |
EA-5041 EA-5043 |
EA-5041-WXP EA-5043-WXP |
| 5 5 |
480 480 |
1 3 |
15 15 |
13 13 |
A-5051 A-5053 |
A-5051-WXP A-5053-WXP |
EA-5051 EA-5053 |
EA-5051-WXP EA-5053-WXP |
- Standard temperature range is 60°-250°F.
- For temperature range of 30°-110°F: add the suffix T1
- For temperature range of 200°-550°F: add the suffix T5
- For stainless steel header instead of brass header: add the suffix SSN. Consult Factory.
- Regulated models require a magnetic contactor for the following conditions:
- Single phase ampere rating over 30 amps
- All 208 and 240 volt, 3 phase applications.
- All 480V, single and three phase applications.
- 208V models not shown are available upon request. Consult factory.
- 240V units may be derated for 208V usage with a 25% reduction in wattage.
