Alloy Sheath Immersion Element
With 1-1/4" N.P.T. Brass Screw Plug-Silver Brazed
- 50 Watts Per Square Inch
- 3/8" ID Stainless Steel Thermowell

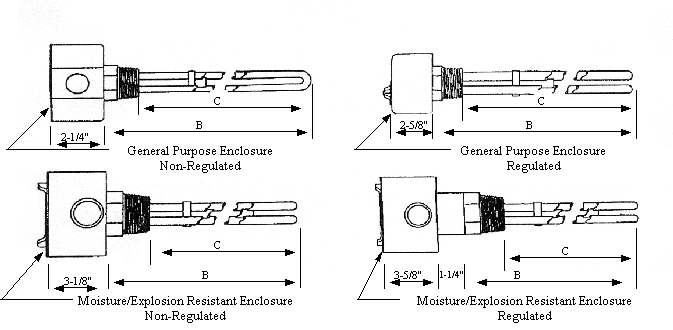

- Regulated (Single Pole Stat) and Non-Regulated
| KW | Volts | Phase | Dimensions (Inches) |
Non-Regulated | Regulated (60°-250°F) | |||
| General Purpose Enclosure |
Moisture/Explosion Resistant Enclosure |
General Purpose Enclosure |
Moisture/Explosion Resistant Enclosure |
|||||
| B | C | |||||||
| 1 1 |
120 240 |
1 1 |
6-9/16 6-9/16 |
5-3/4 5-3/4 |
AQ-1011 AQ-1041 |
AQ-1011-WXP AQ-1041-WXP |
EAQ-1011 EAQ-1041 |
EAQ-1011-WXP EAQ-1041-WXP |
| 1.5 1.5 |
120 240 |
1 1 |
12-1/4 12-1/4 |
11 11 |
AQ-1511 AQ-1541 |
AQ-1511-WXP AQ-1541-WXP |
EAQ-1511 EAQ-1541 |
EAQ-1511-WXP EAQ-1541-WXP |
| 1.5 1.5 |
120 240 |
1 1 |
11-3/4 11-3/4 |
10-1/2 10-1/2 |
AQ2-1511 AQ2-1541 |
AQ2-1511-WXP AQ2-1541-WXP |
EAQ2-1511 EAQ2-1541 |
EAQ2-1511-WXP EAQ2-1541-WXP |
| 2 2 |
120 240 |
1 1 |
12-1/4 12-1/4 |
11 11 |
AQ2-2011 AQ2-2041 |
AQ2-2011-WXP AQ2-2041-WXP |
EAQ2-2011 EAQ2-2041 |
EAQ2-2011-WXP EAQ2-2041-WXP |
| 3 3 |
120 240 |
1 1 |
17 17 |
15-1/2 15-1/2 |
AQ2-3011 AQ2-3041 |
AQ2-3011-WXP AQ2-3041-WXP |
EAQ2-3011 EAQ2-3041 |
EAQ2-3011-WXP EAQ2-3041-WXP |
- Standard temperature range is 60°-250°F.
- For temperature range of 30°-110°F: add the suffix T1
- For temperature range of 200°-550°F: add the suffix T5
- For stainless steel header instead of brass header: add the suffix SSN. Consult Factory.
- Regulated models require a magnetic contactor for the following conditions:
- Single phase ampere rating over 30 amps
- All 208 and 240 volt, 3 phase applications.
- All 480V, single and three phase applications.
- 208 and 480V models not shown are available upon request. Consult factory.
- 240V units may be derated for 208V usage with a 25% reduction in wattage.
