Alloy Sheath Immersion Element
With 1" N.P.T. Brass Screw Plug-Silver Brazed
- 50 Watts Per Square Inch
- 3/8" ID Stainless Steel Thermowell
- Regulated (Single Pole Stat) and Non-Regulated

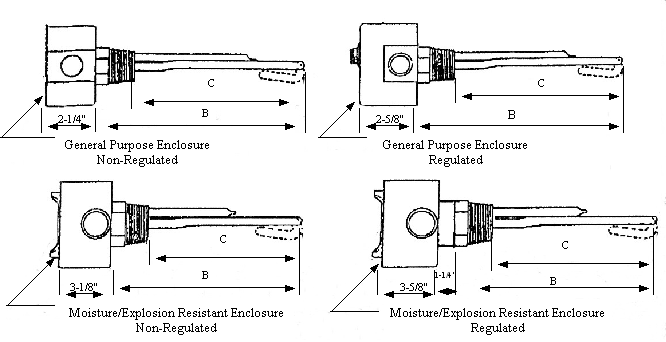

| KW | Volts | Phase | Dimensions (Inches) |
Non-Regulated | Regulated (60°-250°F) | |||
| General Purpose Enclosure |
Moisture/Explosion Resistant Enclosure |
General Purpose Enclosure |
Moisture/Explosion Resistant Enclosure |
|||||
| B | C | |||||||
| 1 1 |
120 240 |
1 1 |
10-1/2 10-1/2 |
10-3/4 10-3/4 |
AO-1011 AO-1041 |
AO-1011-WXP AO-1041-WXP |
EAO-1011 EAO-1041 |
EAO-1011-WXP EAO-1041-WXP |
| 1.5 1.5 |
120 240 |
1 1 |
12-1/2 12-1/2 |
11 11 |
AO-1511 AO-1541 |
AO-1511-WXP AO-1541-WXP |
EAO-1511 EAO-1541 |
EAO-1511-WXP EAO-1541-WXP |
| 2 2 |
120 240 |
1 1 |
14-3/4 14-3/4 |
13-1/4 13-1/4 |
AO-2011 AO-2041 |
AO-2011-WXP AO-2041-WXP |
EAO-2011 EAO-2041 |
EAO-2011-WXP EAO-2041-WXP |
| 3 3 |
120 240 |
1 1 |
19-3/4 19-3/4 |
18-1/4 18-1/4 |
AO-3011 AO-3041 |
AO-3011-WXP AO-3041-WXP |
EAO-3011 EAO-3041 |
EAO-3011-WXP EAO-3041-WXP |
- Standard temperature range is 60°-250°F.
- For temperature range of 30°-110°F: add the suffix T1
- For temperature range of 200°-550°F: add the suffix T5
- For stainless steel header instead of brass header: add the suffix SSN. Consult Factory.
- Regulated models require a magnetic contactor for the following conditions:
- Single phase ampere rating over 30 amps
- All 208 and 240 volt, 3 phase applications.
- 208 and 480V models not shown are available upon request. Consult factory.
- 208 and 480V models not shown are available upon request. Consult factory.
- 240V units may be derated for 208V usage with a 25% reduction in wattage.
