Alloy Sheath Immersion Element
With 2-1/2" N.P.T. Stainless Steel Screw Plug-Welded
- 30 Watts Per Square Inch With Thermowell
- 3/8" ID Stainless Steel Thermowell
- Regulated
| Single Pole Regulated (60°-250°F) | KW | Volts | Phase | Dimensions (Inches) |
Double Pole Regulated (60°-250°) | |||

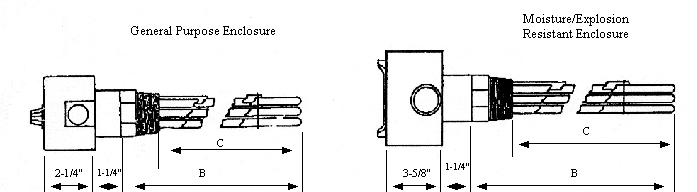

| General Purpose Enclosure |
Moisture/Explosion Resistant Enclosure |
General Purpose Enclosure |
Moisture/Explosion Resistant Enclosure |
|||||
| B | C | |||||||
| EAA-3041LSSN EAA-3043LSSN |
EAA-3041LSSN-WXP EAA-3043LSSN-WXP |
3 3 |
240 240 |
1 3 |
17-1/8 17-1/8 |
15 15 |
DAA-3041LSSN DAA-3043LSSN |
DAA-3041LSSN-WXP DAA-3043LSSN-WXP |
| EAA-3051LSSN EAA-3053LSSN |
EAA-3051LSSN-WXP EAA-3053LSSN-WXP |
3 3 |
480 480 |
1 3 |
17-1/8 17-1/8 |
15 15 |
DAA-3051LSSN DAA-3053LSSN |
DAA-3051LSSN-WXP DAA-3053LSSN-WXP |
| EAA-5041LSSN EAA-5043LSSN |
EAA-5041LSSN-WXP EAA-5043LSSN-WXP |
5 5 |
240 240 |
1 3 |
22-1/8 22-1/8 |
20 20 |
DAA-5041LSSN DAA-5043LSSN |
DAA-5041LSSN-WXP DAA-5043LSSN-WXP |
| EAA-5051LSSN EAA-5053LSSN |
EAA-5051LSSN-WXP EAA-5053LSSN-WXP |
5 5 |
480 480 |
1 3 |
22-1/8 22-1/8 |
20 20 |
DAA-5051LSSN DAA-5053LSSN |
DAA-5051LSSN-WXP DAA-5053LSSN-WXP |
| EAA-7541LSSN EAA-7543LSSN |
EAA-7541LSSN-WXP EAA-7543LSSN-WXP |
7.5 7.5 |
240 240 |
1 3 |
36-1/8 36-1/8 |
34 34 |
DAA-7541LSSN DAA-7543LSSN |
DAA-7541LSSN-WXP DAA-7543LSSN-WXP |
| EAA-7551LSSN EAA-7553LSSN |
EAA-7551LSSN-WXP EAA-7553LSSN-WXP |
7.5 7.5 |
480 480 |
1 3 |
36-1/8 36-1/8 |
34 34 |
DAA-7551LSSN DAA-7553LSSN |
DAA-7551LSSN-WXP DAA-7553LSSN-WXP |
| EAA-10041LSSN EAA-10043LSSN |
EAA-10041LSSN-WXP EAA-10043LSSN-WXP |
10 10 |
240 240 |
1 3 |
42-1/8 42-1/8 |
40 40 |
DAA-10041LSSN DAA-10043LSSN |
DAA-10041LSSN-WXP DAA-10043LSSN-WXP |
| EAA-10051LSSN EAA-10053LSSN |
EAA-10051LSSN-WXP EAA-10053LSSN-WXP |
10 10 |
480 480 |
1 3 |
42-1/8 42-1/8 |
40 40 |
DAA-10051LSSN DAA-10053LSSN |
DAA-10051LSSN-WXP DAA-10053LSSN-WXP |
- Standard temperature range is 60°-250°F.
- For temperature range of 30°-110°F: add the suffix T1
- For temperature range of 200°-550°F: add the suffix T5
- Regulated models require a magnetic contactor for the following conditions:
- Single phase and three phase ampere rating over 30 amps.
- All 208 and 240 volt, three phase applications with single pole thermostats.
- All 480 volt, single and three phase applications with single pole thermostats.
- 208V models not shown are available upon request. Consult factory.
- 240V units may derated for 208V usage with a 25% reduction in wattage.
