Alloy Sheath Immersion Element
With 2-1/2" N.P.T. Stainless Steel Screw Plug-Welded

30 Watts Per Square Inch With Thermowell
3/8" ID Stainless Steel Thermowell
Non-Regulated

KW Volts Phase Dimensions
(Inches)
Non-Regulated

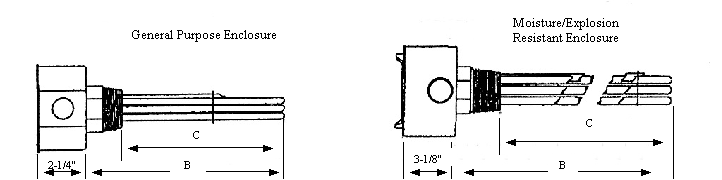

General Purpose
Enclosure
Moisture/Explosion
Resistant Enclosure
B C
3
3
240
240
1
3
17-1/8
17-1/8
15
15
AA-3041LSSN
AA-3043LSSN
AA-3041LSSN-WXP
AA-3043LSSN-WXP
3
3
480
480
1
3
17-1/8
17-1/8
15
15
AA-3051LSSN
AA-3053LSSN
AA-3051LSSN-WXP
AA-3053LSSN-WXP
5
5
240
240
1
3
22-1/8
22-1/8
20
20
AA-5041LSSN
AA-5043LSSN
AA-5041LSSN-WXP
AA-5043LSSN-WXP
5
5
480
480
1
3
22-1/8
22-1/8
20
20
AA-5051LSSN
AA-5053LSSN
AA-5051LSSN-WXP
AA-5053LSSN-WXP
7.5
7.5
240
240
1
3
36-1/8
36-1/8
34
34
AA-7541LSSN
AA-7543LSSN
AA-7541LSSN-WXP
AA-7543LSSN-WXP
7.5
7.5
480
480
1
3
36-1/8
36-1/8
34
34
AA-7551LSSN
AA-7553LSSN
AA-7551LSSN-WXP
AA-7553LSSN-WXP
10
10
240
240
1
3
42-1/8
42-1/8
40
40
AA-10041LSSN
AA-10043LSSN
AA-10041LSSN-WXP
AA-10043LSSN-WXP
10
10
480
480
1
3
42-1/8
42-1/8
40
40
AA-10051LSSN
AA-10053LSSN
AA-10051LSSN-WXP
AA-10053LSSN-WXP

Note:
