Alloy Sheath Immersion Element
With 2" N.P.T. Stainless Steel Screw Plug-Welded

30 Watts Per Square Inch With Thermowell
3/8" ID Stainless Steel Thermowell
Regulated

Single Pole - Regulated (60°-250°F) KW Volts Phase Dimensions
(Inches)
Double Pole - Regulated (60°-250°F)

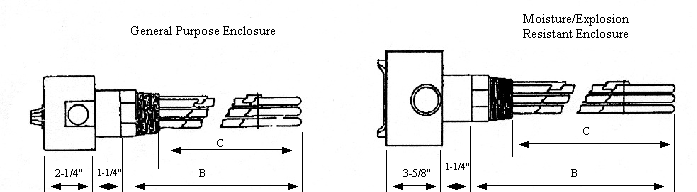

General Purpose
Enclosure
Moisture/Explosion
Resistant Enclosure
General Purpose
Enclosure
Moisture/Explosion
Resistant Enclosure
B C
EA-3041LSSN
EA-3043LSSN
EA-3041LSSN-WXP
EA-3043LSSN-WXP
3
3
240
240
1
3
15-1/2
15-1/2
13-1/2
13-1/2
DA-3041LSSN
DA-3043LSSN
DA-3041LSSN-WXP
DA-3043LSSN-WXP
EA-3051LSSN
EA-3053LSSN
EA-3051LSSN-WXP
EA-3053LSSN-WXP
3
3
480
480
1
3
15-1/2
15-1/2
13-1/2
13-1/2
DA-3051LSSN
DA-3053LSSN
DA-3051LSSN-WXP
DA-3053LSSN-WXP
EA-5041LSSN
EA-5043LSSN
EA-5041LSSN-WXP
EA-5043LSSN-WXP
5
5
240
240
1
3
24
24
22
22
DA-5041LSSN
DA-5043LSSN
DA-5041LSSN-WXP
DA-5043LSSN-WXP
EA-5051LSSN
EA-5053LSSN
EA-5051LSSN-WXP
EA-5053LSSN-WXP
5
5
480
480
1
3
24
24
22
22
DA-5051LSSN
DA-5053LSSN
DA-5051LSSN-WXP
DA-5053LSSN-WXP
EA-7541LSSN
EA-7543LSSN
EA-7541LSSN-WXP
EA-7543LSSN-WXP
7.5
7.5
240
240
1
3
34
34
32
32
DA-7541LSSN
DA-7543LSSN
DA-7541LSSN-WXP
DA-7543LSSN-WXP
EA-7551LSSN
EA-7553LSSN
EA-7551LSSN-WXP
EA-7553LSSN-WXP
7.5
7.5
480
480
1
3
34
34
32
32
DA-7551LSSN
DA-7553LSSN
DA-7551LSSN-WXP
DA-7553LSSN-WXP
EA-10041LSSN
EA-10043LSSN
EA-10041LSSN-WXP
EA-10043LSSN-WXP
10
10
240
240
1
3
45
45
43
43
DA-10041LSSN
DA-10043LSSN
DA-10041LSSN-WXP
DA-10043LSSN-WXP
EA-10051LSSN
EA-10053LSSN
EA-10051LSSN-WXP
EA-10053LSSN-WXP
10
10
480
480
1
3
45
45
43
43
DA-10051LSSN
DA-10053LSSN
DA-10051LSSN-WXP
DA-10053LSSN-WXP

Note:
