Alloy Sheath Immersion Element
With 2-1/2" N.P.T. Stainless Steel Screw Plug-Welded

30 Watts Per Square Inch With Thermowell
3/8" ID Stainless Steel Thermowell
Regulated

Single Pole Regulated (60°-250°F) KW Volts Phase Dimensions
(Inches)
Double Pole Regulated (60°-250°)

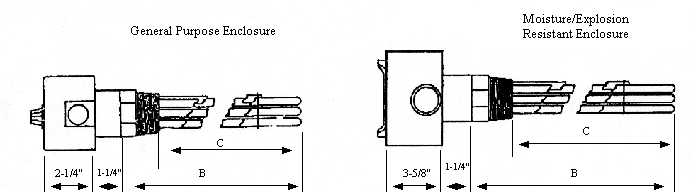

General Purpose
Enclosure
Moisture/Explosion
Resistant Enclosure
General Purpose
Enclosure
Moisture/Explosion
Resistant Enclosure
B C
EAA-3041LSSN
EAA-3043LSSN
EAA-3041LSSN-WXP
EAA-3043LSSN-WXP
3
3
240
240
1
3
17-1/8
17-1/8
15
15
DAA-3041LSSN
DAA-3043LSSN
DAA-3041LSSN-WXP
DAA-3043LSSN-WXP
EAA-3051LSSN
EAA-3053LSSN
EAA-3051LSSN-WXP
EAA-3053LSSN-WXP
3
3
480
480
1
3
17-1/8
17-1/8
15
15
DAA-3051LSSN
DAA-3053LSSN
DAA-3051LSSN-WXP
DAA-3053LSSN-WXP
EAA-5041LSSN
EAA-5043LSSN
EAA-5041LSSN-WXP
EAA-5043LSSN-WXP
5
5
240
240
1
3
22-1/8
22-1/8
20
20
DAA-5041LSSN
DAA-5043LSSN
DAA-5041LSSN-WXP
DAA-5043LSSN-WXP
EAA-5051LSSN
EAA-5053LSSN
EAA-5051LSSN-WXP
EAA-5053LSSN-WXP
5
5
480
480
1
3
22-1/8
22-1/8
20
20
DAA-5051LSSN
DAA-5053LSSN
DAA-5051LSSN-WXP
DAA-5053LSSN-WXP
EAA-7541LSSN
EAA-7543LSSN
EAA-7541LSSN-WXP
EAA-7543LSSN-WXP
7.5
7.5
240
240
1
3
36-1/8
36-1/8
34
34
DAA-7541LSSN
DAA-7543LSSN
DAA-7541LSSN-WXP
DAA-7543LSSN-WXP
EAA-7551LSSN
EAA-7553LSSN
EAA-7551LSSN-WXP
EAA-7553LSSN-WXP
7.5
7.5
480
480
1
3
36-1/8
36-1/8
34
34
DAA-7551LSSN
DAA-7553LSSN
DAA-7551LSSN-WXP
DAA-7553LSSN-WXP
EAA-10041LSSN
EAA-10043LSSN
EAA-10041LSSN-WXP
EAA-10043LSSN-WXP
10
10
240
240
1
3
42-1/8
42-1/8
40
40
DAA-10041LSSN
DAA-10043LSSN
DAA-10041LSSN-WXP
DAA-10043LSSN-WXP
EAA-10051LSSN
EAA-10053LSSN
EAA-10051LSSN-WXP
EAA-10053LSSN-WXP
10
10
480
480
1
3
42-1/8
42-1/8
40
40
DAA-10051LSSN
DAA-10053LSSN
DAA-10051LSSN-WXP
DAA-10053LSSN-WXP

Note:
