Alloy Sheath Immersion Element
With 2" N.P.T. Stainless Steel Screw Plug-Welded

30 Watts Per Square Inch With Thermowell
3/8" ID Stainless Steel Thermowell
Non-Regulated

KW Volts Phase Dimensions
(Inches)
Non-Regulated

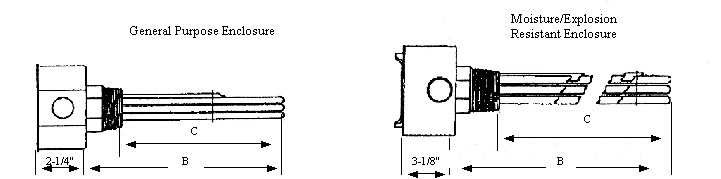

General Purpose
Enclosure
Moisture/Explosion
Resistant Enclosure
B C
3
3
240
240
1
3
15-1/2
15-1/2
13-1/2
13-1/2
A-3041LSSN
A-3043LSSN
A-3041LSSN-WXP
A-3043LSSN-WXP
3
3
480
480
1
3
15-1/2
15-1/2
13-1/2
13-1/2
A-3051LSSN
A-3053LSSN
A-3051LSSN-WXP
A-3053LSSN-WXP
5
5
240
240
1
3
24
24
22
22
A-5041LSSN
A-5043LSSN
A-5041LSSN-WXP
A-5043LSSN-WXP
5
5
480
480
1
3
24
24
22
22
A-5051LSSN
A-5053LSSN
A-5051LSSN-WXP
A-5053LSSN-WXP
7.5
7.5
240
240
1
3
34
34
32
32
A-7541LSSN
A-7543LSSN
A-7541LSSN-WXP
A-7543LSSN-WXP
7.5
7.5
480
480
1
3
34
34
32
32
A-7551LSSN
A-7553LSSN
A-7551LSSN-WXP
A-7553LSSN-WXP
10
10
240
240
1
3
45
45
43
43
A-10041LSSN
A-10043LSSN
A-10041LSSN-WXP
A-10043LSSN-WXP
10
10
480
480
1
3
45
45
43
43
A-10051LSSN
A-10053LSSN
A-10051LSSN-WXP
A-10053LSSN-WXP

Note:
