THERMOSTATS

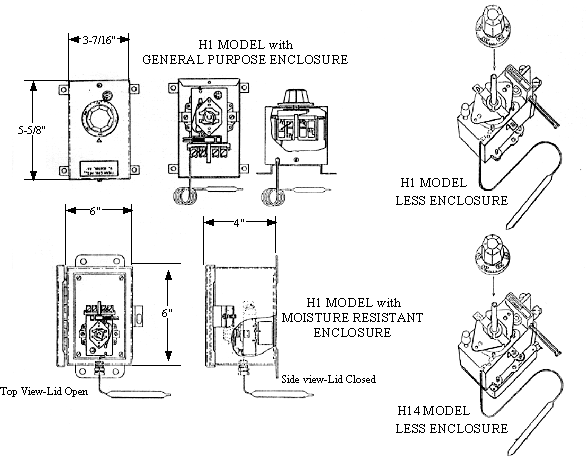

H1 MODEL

Double-Pole, Single-Throw, Snap Action, Direct Acting,
Bulb and Capillary Type Thermostats with High Temperature
Cutout and Manual Reset Button.

These thermostats have a high temperature cutout which protects the elements from burning out due to a low water level. The cutout contacts open on temperature rise and may be re-closed with a manual reset button.

DOUBLE-POLE, SINGLE-THROW THERMOSTATS WITH
HIGH TEMPERATURE COUTOUT, MANUAL RESET BUTTON AND 5% DIFFERENTIAL
MODEL
NUMBER
ENCLOSURE CAPILLARY
TUBE
LENGTH
BULB SIZE TEMPERATURE
RANGE
OGDEN
PART NO.
H1-2531-K
H1-2531-KE
H1-2531-KWP
None
General Purpose
Moisture Resistant
36" 3/8" x 4 1/2" 60-250F H1-L3
H14-2531-K
H14-2531-KE
H14-2531-KWP
None
General Purpose
Moisture Resistant
36" 3/8" x 4 1/2" 60-250F H14-L3-3Ø
