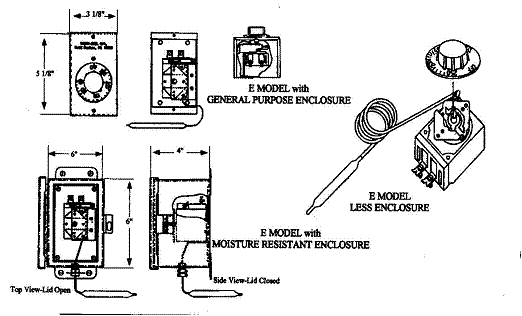

E MODEL THERMOSTAT

 THESE TEMPERATURE CONTROLS WTITH NORMALLY CLOSED CONTACTS, OPEN ON TEMPERATURE RISE AND ARE SUITABLE FOR  CONTROLLING AWIDE RANGE OF ELECTRICAL APPLICATION

RESISTIVE LOAD 120V - 250 V  25AMPS

* TO BE USED ONLY AS A REPLACEMENT PART FOR A THERM COIL IMMERSION HEATER

11/13/13

** DIAL MARKED 0-10 TEMPERATURE  TO DAIL SETTING INCLUDE

SINGLE POLE .SINGLE THROW  THERMOSTAT WITH ± 5 % DIFFERENTIAL

THERM COIL DRAWING NO.

MODEL NUMBER

ENCLOSURE TYPE

CAPILLARY LENGTH

BULB   SIZE

TEMP. RANGE

LIST

337T-1283-006

**E-971-K

NONE

84”

3/8X 7 5/8”

**30°-90°F

$135.00

337T-1282-005

**E-971-KE

GENERAL PURPOSE

84”

3/8X 7 5/8”

**30°-90°F

$201.00

337T-1284-005

**E-971-KEP

GENERAL PURPOSE WITH PILOT LITE

84”

3/8X 7 5/8”

**30°-90°F

$219.50

337T-1283-001

E-1031-K

NONE

36”

3/8 X 6 1/2

**30°-110° F

$150.00

337T-1282-001

E-1031-KE

GENERAL PURPOSE

36”

3/8 X 6 1/2

**30°-110° F

$224.00

337T-1284-001

E-1031-KEP

GENERAL PURPOSE WITH PILOT LITE

36”

3/8 X 6 1/2

**30°-110° F

$244.50

337T-3000-001

E-1031-KWP

MOISTURE RESISTANT

36”

3/8 X X6 1/2

**30°-110° F

C/F

337T-1283-002

* E-2511-K12

NONE

12”

3/8 X 4 1/2

60°-250° F

$79.50

337T-1283-003

E-2541-K

NONE

48”

3/8 X 4 1/2

60°-250° F

$132.30

337T-1282-002

E-2541-KE

GENERAL PURPOSE

48”

3/8 X 4 1/2

60°-250° F

$204.00

337T-1284-002

E-2541-KEP

GENERAL PURPOSE WITH  PILOT LITE

48”

3/8 X 4 1/2

60°-250° F

$224.00

337T-3000-002

E-2541-KWP

MOSTURE RESISTANT

48”

3/8 X 4 1/2

60°-250° F

C/F

337T-1283-005

E-5511K-18

NONE

18”



200°-550° F

$99.00

337T-1282-004

E-5511-KE-18

GENERAL PURPOSE

18”



200°-550° F

$152.40

337T-1284-004

E-5511-KEP-18

GENERAL PURPOSE WITH  PILOT LITE

18”



200°-550° F

$172.20

337T-1283-004

E-5592-K

NONE

96”

1/4 X 7

200°-550° F

$166.00

337T-1282-003

E-5592-KE

GENERAL PURPOSE

96”

1/4 X 7

200°-550° F

$240.00

337T-1284-003

E 5592-KEP

GENERAL PURPOSE WITH  PILOT LITE

96”

1/4 X 7

200°-550° F

$260.40

337T-3000-003

E-5592-KWP

MOISTURE RESISTANT

96”

1/4 X 7

200°-550° F

C/F
