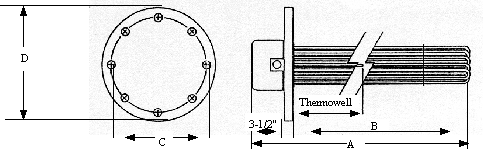

Standard Terminal Enclosure |
48
|
Standard Terminal Enclosure |
| MODEL NO. | KW 1 or 3 PHASE |
DIMENSIONS (INCHES) | FLANGE SIZE |
|||
| 208 VOLT | 240 VOLT | 480 VOLT | Aħ1 | Bħ1 | ||
| PFS-3023-3L PFS-5023-3L PFS-8026-5L |
PFS-3043-3L PFS-5043-3L PFS-8046-5L |
PFS-3053-3L PFS-5053-3L PFS-8056-5L |
3 5 8 |
33 49-3/4 41 |
28-1/2 45-1/4 36-1/2 |
3 3 5 |
| PFS-10026-5L PFS-12029-5L PFS-15029-5L |
PFS-10046-5L PFS-12049-5L PFS-15049-5L |
PFS-10056-5L PFS-12059-5L PFS-15059-5L |
10 12 15 |
49-3/4 41 49-3/4 |
45-1/2 36-1/2 45-1/4 |
5 5 5 |
| PFS-180212-5L PFS-200212-5L PFS-120212-6L |
PFS-180412-5L PFS-200412-5L PFS-120412-6L |
PFS-180512-5L PFS-200512-5L PFS-120512-6L |
18 20 12 |
45-3/4 49-3/4 34-1/2 |
41-1/4 45-1/4 30 |
5 5 6 |
| PFS-180212-6L PFS-200212-6L |
PFS-180412-6L PFS-200412-6L |
PFS-180512-6L PFS-200512-6L |
18 20 |
39 52 |
34-1/2 47-1/2 |
6 6 |
| PFS-250218-8L PFS-400218-8L |
PFS-250418-8L PFS-400418-8L |
PFS-250518-8L PFS-400518-8L |
25 40 |
42-5/8 63-1/4 |
38 58-5/8 |
8 8 |
