| MODEL NO. | KW 1 or 3 PHASE |

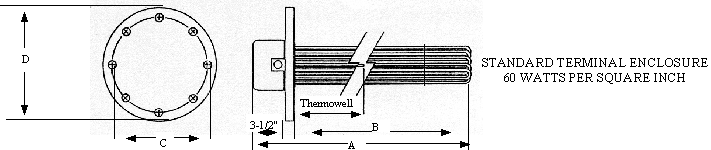

DIMENSIONS (INCHES) | FLANGE SIZE |
|||
| 208 VOLT | 240 VOLT | 480 VOLT | Aħ1 | Bħ1 | ||
| PFC-3023-3 PFC-6023-3 PFC-9023-3 |
PFC-3043-3 PFC-6043-3 PFC-9043-3 |
PFC-3053-3 PFC-6053-3 PFC-9053-3 |
3 6 9 |
13-1/2 20 25 |
9 15-1/2 20-1/2 |
3 3 3 |
| PFC-12023-3 PFC-15023-3 PFC-18023-3 |
PFC-12043-3 PFC-15043-3 PFC-18043-3 |
PFC-12053-3 PFC-15053-3 PFC-18053-3 |
12 15 18 |
32-1/2 38-1/2 45 |
28 34 40-1/2 |
3 3 3 |
| PFC-20023-3 PFC-25023-3 PFC-25026-5 |
PFC-20043-3 PFC-25043-3 PFC-25046-5 |
PFC-20053-3 PFC-25053-3 PFC-25056-5 |
20 25 25 |
48 59-1/2 33-1/2 |
43-1/2 55 29 |
3 3 5 |
| PFC-30026-5 |
PFC-30046-5 PFC-40046-5 PFC-50046-5 |
PFC-30056-5 PFC-40056-5 PFC-50056-6 |
30 40 50 |
38-1/2 48 59-1/2 |
34 43-1/2 55 |
5 5 5 |
| |
PFC-60049-5 PFC-75049-5 PFC-1000412-5 |
PFC-60059-5 PFC-75059-5 PFC-1000512-5 |
60 75 100 |
48 59-1/2 59-1/2 |
43-1/2 55 55 |
5 5 5 |
| PFC-240212-6 PFC-300212-6 |
PFC-240412-6 PFC-300412-6 PFC-360412-6 |
PFC-240512-6 PFC-300512-6 PFC-360512-6 |
24 30 36 |
20-1/2 23 24-1/2 |
16 18-1/2 20 |
6 6 6 |
| |
PFC-480412-6 PFC-720412-6 |
PFC-480512-6 PFC-720512-6 |
48 72 |
30 40-1/2 |
25-1/2 36 |
6 6 |
| |
PFC-900412-6 PFC-1000412-6 |
PFC-900512-6 PFC-1000512-6 |
90 100 |
48-1/2 59-1/2 |
44 55 |
6 6 |
| |
PFC-500418-8 PFC-750418-8 |
PFC-500518-8 PFC-750518-8 |
50 75 |
42-1/8 33-5/8 |
37-1/2 29 |
8 8 |
| |
PFC-1000418-8 PFC-1250418-8 PFC-1500418-8 |
PFC-1000518-8 PFC-1250518-8 PFC-1500518-8 |
100 125 150 |
42-1/8 50-5/8 59-5/8 |
37-1/2 46 55 |
8 8 8 |
| |
PFC-1750418-8 PFC-2000418-8 PFC-1500424-10 |
PFC-1750518-8 PFC-2000518-8 PFC-1500524-10 |
175 200 150 |
68-5/8 76-5/8 46-5/8 |
64 72 42 |
8 8 10 |
Note:
