PIPE FLANGE ELECTRIC HEATING ELEMENTS
ALLOY SHEATH FOR STEAM & AIR

MODEL NO. KW
1 or 3
PHASE

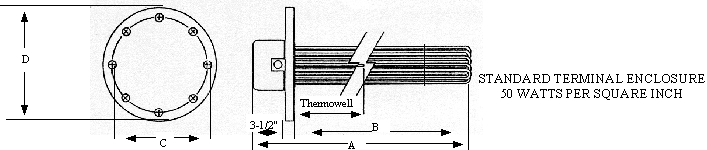

DIMENSIONS (INCHES) FLANGE
SIZE
208 VOLT 240 VOLT 480 VOLT Aħ1 Bħ1
PFA-5023-3
PFA-7523-3
PFA-10023-3
PFA-5043-3
PFA-7543-3
PFA-10043-3
PFA-5053-3
PFA-7553-3
PFA-10053-3
5
7.5
10
21
27-1/2
38
16-1/2
23
33-1/2
3
3
3
PFA-12023-3
PFA-15023-3
PFA-18023-3
PFA-12043-3
PFA-15043-3
PFA-18043-3
PFA-12053-3
PFA-15053-3
PFA-18053-3
12
15
18
38-1/2
43-1/2
53
34
39
48-1/2
3
3
3
PFA-9026-5
PFA-12026-5
PFA-15026-5
PFA-9046-5
PFA-12046-5
PFA-15046-5
PFA-9056-5
PFA-12056-5
PFA-15056-5
9
12
15
19
23
27
14-1/2
18-1/2
22-1/2
5
5
5
PFA-18026-5
PFA-20026-5
PFA-24026-5
PFA-18046-5
PFA-20046-5
PFA-24046-5
PFA-18056-5
PFA-20056-6
PFA-24056-5
18
20
24
31-1/2
36-1/2
38
27
32
33-1/2
5
5
5
PFA-30029-5


PFA-30049-5
PFA-36046-5
PFA-45049-5
PFA-30059-5
PFA-36056-5
PFA-45059-5
30
36
45
36-1/2
52-1/2
43
32
48
38-1/2
5
5
5

PFA-180212-6
PFA-240212-6
PFA-54049-5
PFA-180412-6
PFA-240412-6
PFA-54059-5
PFA-180512-6
PFA-240512-6
54
18
24
52-1/2
19
23
48
14-1/2
18-1/2
5
6
6
PFA-300212-6


PFA-300412-6
PFA-360412-6
PFA-400412-6
PFA-300512-6
PFA-360512-6
PFA-400512-6
30
36
40
27
31-1/2
36-1/2
22-1/2
27
32
6
6
6


PFA-480412-6
PFA-600412-6
PFA-480512-6
PFA-600512-6
48
60
38
43
33-1/2
38-1/2
6
6


PFA-720412-6
PFA-480418-8
PFA-720512-6
PFA-480518-8
72
48
52-1/2
27-1/8
48
22-1/2
6
8


PFA-720418-8
PFA-1050418-8
PFA-1200424-8
PFA-720518-8
PFA-1050518-8
PFA-1200524-8
72
105
120
38-1/8
43-1/8
43-1/8
33-1/2
38-1/2
38-1/2
8
8
8






PFA-1440524-8
PFA-1900548-10
PFA-2550548-10
144
190
255
52-5/8
38-1/8
55-5/8
48
33-1/2
51
8
10
10

Note:
