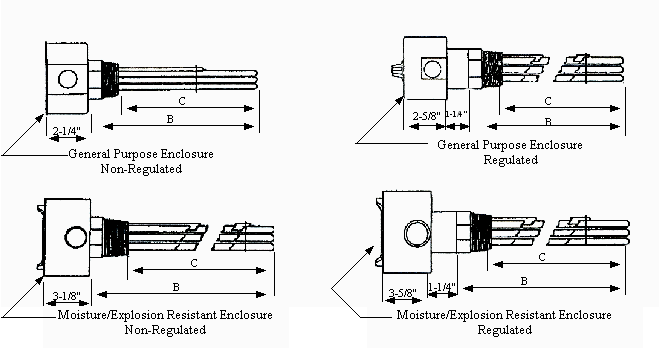

Steel Sheath Immersion Element
With 2-1/2" N.P.T. Brass Screw Plug-Silver Brazed

For Oil - 22 Watts Per Square Inch
With 3/8" ID Copper Thermowell
Regulated (Single Pole Stat) and Non-Regulated

Note:

• Standard temperature range is 60°-250°F.
• For temperature range of 30°-110°F: add the suffix T1
• For temperature range of 200°-550°F: add the suffix T5
• For stainless steel header instead of brass header: add the suffix SSN. Consult Factory.
• Regulated models require a magnetic contactor for the following conditions:
  • Single phase ampere rating over 30 amps
  • All 208 and 240 volt, 3 phase applications.
  • All 480V, single and three phase applications.
• 208 models not shown are available upon request. Consult factory.
• 240V units may be derated for 208V usage with a 25% reduction in wattage.
