Steel Sheath Immersion Element
With 2-1/2" N.P.T. Brass Screw Plug-Silver Brazed

For Oil - 22 Watts Per Square Inch
Regulated (Double Pole Stat)

KW Volts Phase Dimensions
(Inches)
Regulated (60-250F)

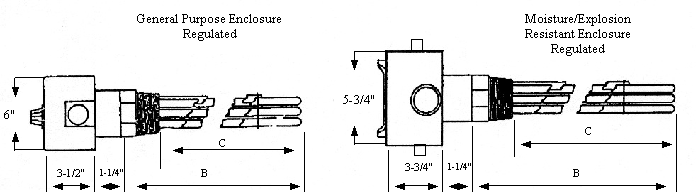

General Purpose
Enclosure
Moisture/Explosion
Resistant Enclosure
B C
3
3
240
240
1
3
21
21
19
19
DSS-3041
DSS-3043
DSS-3041WXP
DSS-3043WXP
3
3
480
480
1
3
21
21
19
19
DSS-3051
DSS-3053
DSS-3051WXP
DSS-3053WXP
5
5
240
240
1
3
29
29
27
27
DSS-5041
DSS-5043
DSS-5041WXP
DSS-5043WXP
5
5
480
480
1
3
29
29
27
27
DSS-5051
DSS-5053
DSS-5051WXP
DSS-5053WXP
7.5
7.5
240
240
1
3
45-1/2
45-1/2
43-1/2
43-1/2
DSS-7541
DSS-7543
DSS-7541WXP
DSS-7543WXP
7.5
7.5
480
480
1
3
45-1/2
45-1/2
43-1/2
43-1/2
DSS-7551
DSS-7553
DSS-7551WXP
DSS-7553WXP
10
10
240
480
3
3
59-1/2
59-1/2
57-1/2
57-1/2
DSS-10043
DSS-10053
DSS-10043WXP
DSS-10053WXP

Note:
