For Oil - 22 Watts Per Square Inch
With 3/8" ID Copper Thermowell
Regulated (Single Pole Stat) and Non-Regulated

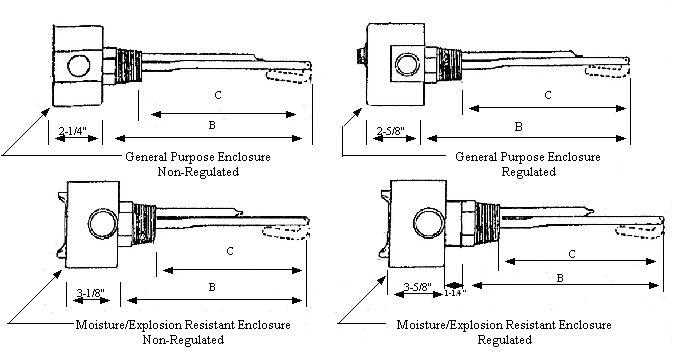

| KW | Volts | Phase | Dimensions (Inches) |
Non-Regulated | Regulated (60°-250°F) | |||
| General Purpose Enclosure |
Moisture/Explosion Resistant Enclosure |
General Purpose Enclosure |
Moisture/Explosion Resistant Enclosure |
|||||
| B | C | |||||||
| .25 .25 |
120 240 |
1 1 |
7-7/16 7-7/16 |
6-1/4 6-1/4 |
SO-211 SO-241 |
SO-211WXP SO-241WXP |
ESO-211 ESO-241 |
ESO-211WXP ESO-241WXP |
| .5 .5 |
120 240 |
1 1 |
9-7/16 9-7/16 |
8-1/2 8-1/2 |
SO-511 SO-541 |
SO-511WXP SO-541WXP |
ESO-511 ESO-541 |
ESO-511WXP ESO-541WXP |
| .75 .75 |
120 240 |
1 1 |
12-7/16 12-7/16 |
11-1/4 11-1/4 |
SO-711 SO-741 |
SO-711WXP SO-741WXP |
ESO-711 ESO-741 |
ESO-711WXP ESO-741WXP |
| 1 1 |
120 240 |
1 1 |
15-3/16 15-3/16 |
14 14 |
SO-1011 SO-1041 |
SO-1011WXP SO-1041WXP |
ESO-1011 ESO-1041 |
ESO-1011WXP ESO-1041WXP |
| 1 | 480 | 1 | 15-3/16 | 14 | SO-1051 | SO-1051WXP | ESO-1051 | ESO-1051WXP |
Note:
