Copper Sheath Immersion Element
With 2-1/2" N.P.T. Brass Screw Plug-Silver Brazed

For Water - 60 Watts Per Square Inch
Regulated (Double Pole Stat)

KW Volts Phase Dimensions
(Inches)
Regulated (60-250F)

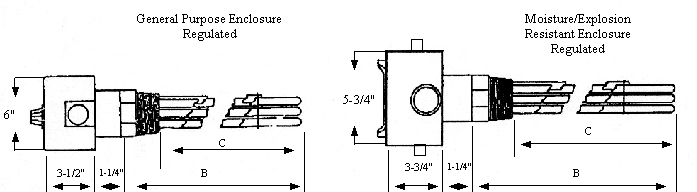

General Purpose
Enclosure
Moisture/Explosion
Resistant Enclosure
B C
3
3
240
240
1
3
10
10
8
8
DCC-3041
DCC-3043
DCC-3041WXP
DCC-3043WXP
3
3
480
480
1
3
10
10
8
8
DCC-3051
DCC-3053
DCC-3051WXP
DCC-3053WXP
5
5
240
240
1
3
13
13
11
11
DCC-5041
DCC-5043
DCC-5041WXP
DCC-5043WXP
5
5
480
480
1
3
13
13
11
11
DCC-5051
DCC-5053
DCC-5051WXP
DCC-5053WXP
7.5
7.5
240
240
1
3
19
19
17
17
DCC-7541
DCC-7543
DCC-7541WXP
DCC-7543WXP
7.5
7.5
480
480
1
3
19
19
17
17
DCC-7551
DCC-7553
DCC-7551WXP
DCC-7553WXP
10
10
240
480
3
3
22
22
20
20
DCC-10043
DCC-10053
DCC-10043WXP
DCC-10053WXP
12
12
240
480
3
3
27
27
25
25
DCC-12043
DCC-12053
DCC-12043WXP
DCC-12053WXP

Note:
