Steel Sheath Immersion Element
With 1-1/4" N.P.T. Steel Screw Plug-Welded

For Oil - 22 Watts Per Square Inch
With 3/8" ID Copper Thermowell
Regulated (Single Pole Stat) and Non-Regulated

KW Volts Phase Dimensions
(Inches)
Non-Regulated Regulated (60-250F)
General Purpose
Enclosure
Moisture/Explosion
Resistant Enclosure
General Purpose
Enclosure
Moisture/Explosion
Resistant Enclosure

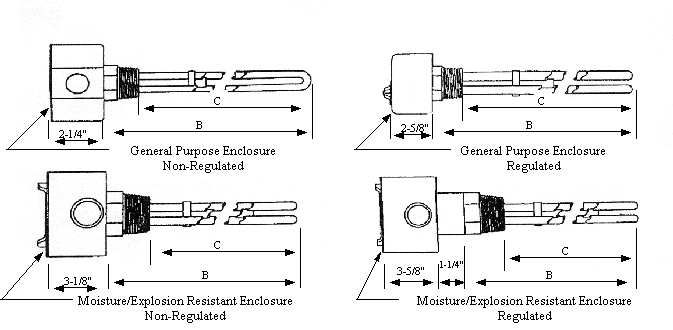

B C
.75
.75
120
240
1
1
14-1/2
14-1/2
12-7/8
12-7/8
SQ-711
SQ-741
SQ-711WXP
SQ-741WXP
ESQ-711
ESQ-741
ESQ-711WXP
ESQ-741WXP
1
1
120
240
1
1
14-1/2
14-1/2
12-3/4
12-3/4
SQ-1011
SQ-1041
SQ-1011WXP
SQ-1041WXP
ESQ-1011
ESQ-1041
ESQ-1011WXP
ESQ-1041WXP
1.5
1.5
120
240
1
1
19-7/16
19-7/16
18
18
SQ2-1511
SQ2-1541
SQ2-1511WXP
SQ2-1541WXP
ESQ2-1511
ESQ2-1541
ESQ2-1511WXP
ESQ2-1541WXP

Note:


29
