For Water - 60 Watts Per Square Inch
With 3/8" ID Copper Thermowell
Regulated (Single Pole Stat) and Non-Regulated
| KW | Volts | Phase | Dimensions (Inches) |
Non-Regulated | Regulated (60°-250°F) | |||

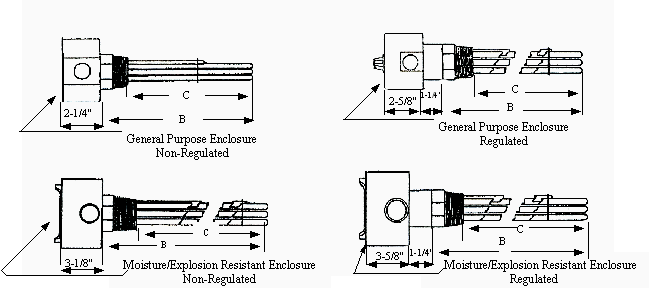

| General Purpose Enclosure |
Moisture/Explosion Resistant Enclosure |
General Purpose Enclosure |
Moisture/Explosion Resistant Enclosure |
|||||
| B | C | |||||||
| 3 3 |
240 240 |
1 3 |
10 10 |
8 8 |
CC-3041 CC-3043 |
CC-3041WXP CC-3043WXP |
ECC-3041 ECC-3043 |
ECC-3041WXP ECC-3043WXP |
| 3 3 |
480 480 |
1 3 |
10 10 |
8 8 |
CC-3051 CC-3053 |
CC-3051WXP CC-3053WXP |
ECC-3051 ECC-3053 |
ECC-3051WXP ECC-3053WXP |
| 5 5 |
240 240 |
1 3 |
13 13 |
11 11 |
CC-5041 CC-5043 |
CC-5041WXP CC-5043WXP |
ECC-5041 ECC-5043 |
ECC-5041WXP ECC-5043WXP |
| 5 5 |
480 480 |
1 3 |
13 13 |
11 11 |
CC-5051 CC-5053 |
CC-5051WXP CC-5053WXP |
ECC-5051 ECC-5053 |
ECC-5051WXP ECC-5053WXP |
| 7.5 7.5 |
240 240 |
1 3 |
19 19 |
17 17 |
CC-7541 CC-7543 |
CC-7541WXP CC-7543WXP |
ECC-7541 ECC-7543 |
ECC-7541WXP ECC-7543WXP |
| 7.5 7.5 |
480 480 |
1 3 |
19 19 |
17 17 |
CC-7551 CC-7553 |
CC-7551WXP CC-7553WXP |
ECC-7551 ECC-7553 |
ECC-7551WXP ECC-7553WXP |
| 10 10 |
240 480 |
3 3 |
22 22 |
20 20 |
CC-10043 CC-10053 |
CC-10043WXP CC-10053WXP |
ECC-10043 ECC-10053 |
ECC-10043WXP ECC-10053WXP |
| 12 12 |
240 480 |
3 3 |
27 27 |
25 25 |
CC-12043 CC-12053 |
CC-12043WXP CC-12053WXP |
ECC-12043 ECC-12053 |
ECC-12043WXP ECC-12053WXP |
Note:
