Copper Sheath Immersion Element
With 2" N.P.T. Brass Screw Plug-Silver Brazed

For Water - 60 Watts Per Square Inch
Regulated (Double Pole Stat)

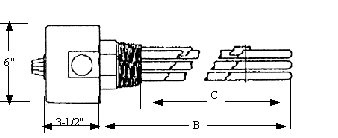

General Purpose Enclosure
Regulated

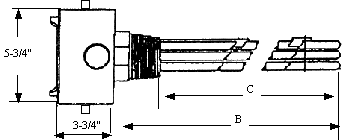

Moisture/Explosion Resistant Enclosure
Regulated
KW Volts Phase Dimensions
(Inches)
Regulated (60-250F)
General Purpose
Enclosure
Moisture/Explosion
Resistant Enclosure
B C
3
3
240
240
1
3
12
12
10
10
DC-3041
DC-3043
DC-3041WXP
DC-3043WXP
3
3
480
480
1
3
12
12
10
10
DC-3051
DC-3053
DC-3051WXP
DC-3053WXP
5
5
240
240
1
3
13
13
11
11
DC-5041
DC-5043
DC-5041WXP
DC-5043WXP
5
5
480
480
1
3
13
13
11
11
DC-5051
DC-5053
DC-5051WXP
DC-5053WXP
7.5
7.5
240
240
1
3
18
18
16
16
DC-7541
DC-7543
DC-7541WXP
DC-7543WXP
7.5
7.5
480
480
1
3
18
18
16
16
DC-7551
DC-7553
DC-7551WXP
DC-7553WXP
10
10
240
480
3
3
24
24
22
22
DC-10043
DC-10053
DC-10043WXP
DC-10053WXP
12
12
240
480
3
3
28
28
26
26
DC-12043
DC-12053
DC-12043WXP
DC-12053WXP

Note:
