Copper Sheath Immersion Element
With 2" N.P.T. Brass Screw Plug-Silver Brazed

For Water - 60 Watts Per Square Inch
With 3/8" ID Copper Thermowell
Regulated (Single Pole Stat) and Non-Regulated

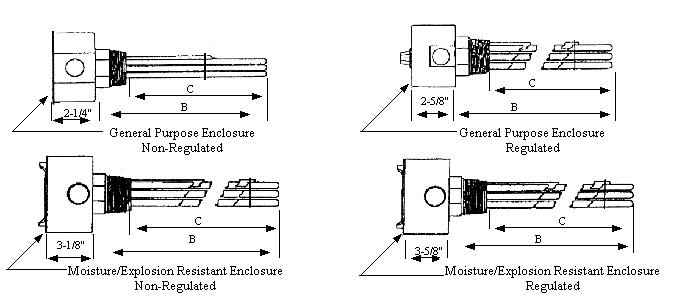

KW Volts Phase Dimensions
(Inches)
Non-Regulated Regulated (60-250F)
General Purpose
Enclosure
Moisture/Explosion
Resistant Enclosure
General Purpose
Enclosure
Moisture/Explosion
Resistant Enclosure
B C
7.5
7.5
240
240
1
3
18
18
16
16
C-7541
C-7543
C-7541WXP
C-7543WXP
EC-7541
EC-7543
EC-7541WXP
EC-7543WXP
7.5
7.5
480
480
1
3
18
18
16
16
C-7551
C-7553
C-7551WXP
C-7553WXP
EC-7551
EC-7553
EC-7551WXP
EC-7553WXP
10
10
240
480
3
3
24
24
22
22
C-10043
C-10053
C-10043WXP
C-10053WXP
EC-10043
EC-10053
EC-10043WXP
EC-10053WXP
12
12
240
480
3
3
28
28
26
26
C-12043
C-12053
C-12043WXP
C-12053WXP
EC-12043
EC-12053
EC-12043WXP
EC-12053WXP

Note:
