Alloy Sheath Immersion Element
With 2" N.P.T. Brass Screw Plug-Silver Brazed
For Corrosive Water

50 Watts Per Square Inch
With 3/8" ID Stainless Steel Thermowell
Regulated (Double Pole Stat)

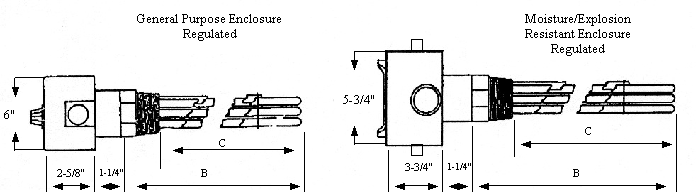

KW Volts Phase Dimensions
(Inches)
Regulated (60°-250°F)
General Purpose
Enclosure
Moisture/Explosion
Resistant Enclosure
B C
7.5
7.5
240
240
1
3
22
22
20
20
DA-7541
DA-7543
DA-7541-WXP
DA-7543-WXP
7.5
7.5
480
480
1
3
22
22
20
20
DA-7551
DA-7553
DA-7551-WXP
DA-7553-WXP
10
10
240
480
3
3
27
27
25
25
DA-10043
DA-10053
DA-10043-WXP
DA-10053-WXP
12
12
240
480
3
3
33
33
31
31
DA-12043
DA-12053
DA-12043-WXP
DA-12053-WXP
15
15
240
480
3
3
39-1/2
39-1/2
37-1/2
37-1/2
DA-15043
DA-15053
DA-15043-WXP
DA-15053-WXP
18
18
240
480
3
3
49-1/2
49-1/2
47-1/2
47-1/2
DA-18043
DA-18053
DA-18043-WXP
DA-18053-WXP

Note:
