15

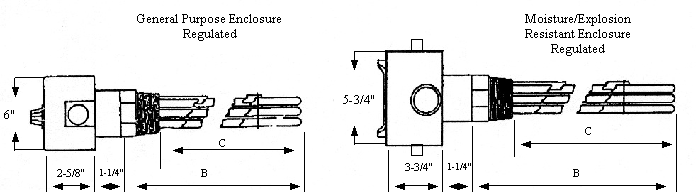

Alloy Sheath Immersion Element
With 2" N.P.T. Brass Screw Plug-Silver Brazed
For Corrosive Water

50 Watts Per Square Inch
With 3/8" ID Stainless Steel Thermowell
Regulated (Double Pole Stat)

Note:

• Standard temperature range is 60°-250°F.
• For temperature range of 30°-110°F: add the suffix T1
• For Temperature range 200°-550°F: add the suffix T5
• For stainless steel header –instead of brass header: add the suffix SSN. Consult Factory.
• Regulated models require a magnetic contactor for the following conditions:
  • All 120-277 volt, single & three phase applications over 30 amps.
  • All 480 volt, single and three phase applications over 21 amps.
• 208V units not shown are available upon request. Consult Factory.
• 240V units may be derated for 208V usage with a 25% reduction in wattage.

15
