Alloy Sheath Immersion Element
With 2-1/2" N.P.T. Brass Screw Plug-Silver Brazed

50 Watts Per Square Inch
With 3/8" ID Stainless Steel Thermowell
Regulated (Single Pole Stat) and Non-Regulated

KW Volts Phase Dimensions
(Inches)
Non-Regulated Regulated (60-250F)

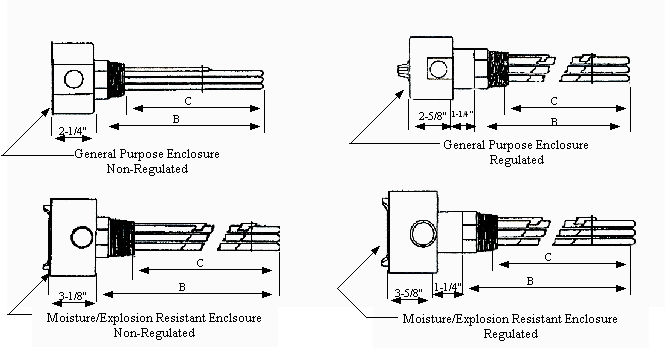

General Purpose
Enclosure
Moisture/Explosion
Resistant Enclosure
General Purpose
Enclosure
Moisture/Explosion
Resistant Enclosure
B C
3
3
240
240
1
3
11
11
9
9
AA-3041
AA-3043
AA-3041-WXP
AA-3043-WXP
EAA-3041
EAA-3043
EAA-3041-WXP
EAA-3043-WXP
3
3
480
480
1
3
11
11
9
9
AA-3051
AA-3053
AA-3051-WXP
AA-3053-WXP
EAA-3051
EAA-3053
EAA-3051-WXP
EAA-3053-WXP
5
5
240
240
1
3
15
15
13
13
AA-5041
AA-5043
AA-5041-WXP
AA-5043-WXP
EAA-5041
EAA-5043
EAA-5041-WXP
EAA-5043-WXP
5
5
480
480
1
3
15
15
13
13
AA-5051
AA-5053
AA-5051-WXP
AA-5053-WXP
EAA-5051
EAA-5053
EAA-5051-WXP
EAA-5053-WXP
7.5
7.5
240
240
1
3
22
22
20
20
AA-7541
AA-7543
AA-7541-WXP
AA-7543-WXP
EAA-7541
EAA-7543
EAA-7541-WXP
EAA-7543-WXP
7.5
7.5
480
480
1
3
22
22
20
20
AA-7551
AA-7553
AA-7551-WXP
AA-7553-WXP
EAA-7551
EAA-7553
EAA-7551-WXP
EAA-7553-WXP

Note:
