Alloy Sheath Immersion Element
With 2" N.P.T. Brass Screw Plug-Silver Brazed

50 Watts Per Square Inch
3/8" ID Stainless Steel Thermowell
Regulated (Single Pole Stat) and Non-Regulated

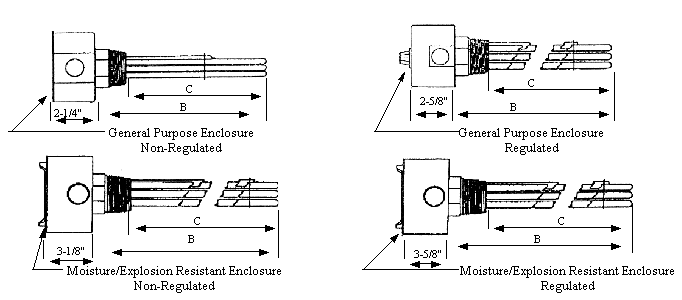

KW Volts Phase Dimensions
(Inches)
Non-Regulated Regulated (60-250F)
General Purpose
Enclosure
Moisture/Explosion
Resistant Enclosure
General Purpose
Enclosure
Moisture/Explosion
Resistant Enclosure
B C
7.5
7.5
240
240
1
3
22
22
20
20
A-7541
A-7543
A-7541-WXP
A-7543-WXP
EA-7541
EA-7543
EA-7541-WXP
EA-7543-WXP
7.5
7.5
480
480
1
3
22
22
20
20
A-7551
A-7553
A-7551-WXP
A-7553-WXP
EA-7551
EA-7553
EA-7551-WXP
EA-7553-WXP
10
10
240
480
3
3
27
27
25
25
A-10043
A-10053
A-10043-WXP
A-10053-WXP
EA-10043
EA-10053
EA-10043-WXP
EA-10053-WXP
12
12
240
480
3
3
33
33
31
31
A-12043
A-12053
A-12043-WXP
A-12053-WXP
EA-12043
EA-12053
EA-12043-WXP
EA-12053-WXP
15
15
240
480
3
3
39-1/2
39-1/2
37-1/2
37-1/2
A-15043
A-15053
A-15043-WXP
A-15053-WXP
EA-15043
EA-15053
EA-15043-WXP
EA-15053-WXP
18
18
240
480
3
3
49-1/2
49-1/2
47-1/2
47-1/2
A-18043
A-18053
A-18043-WXP
A-18053-WXP
EA-18043
EA-18053
EA-18043-WXP
EA-18053-WXP

Note:
