Alloy Sheath Immersion Element
With 1-1/4" N.P.T. Stainless Steel Screw Plug-Nickel Brazed
- 30 Watts Per Square Inch With Thermowell
- 3/8" ID Stainless Steel Thermowell
- Non-Regulated
| KW | Volts | Phase | Rod | Dimensions (Inches) |
Non-Regulated | ||
|---|---|---|---|---|---|---|---|

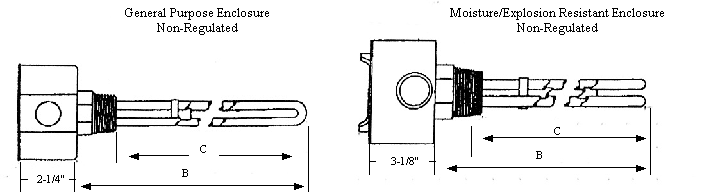

| General Purpose Enclosure |
Moisture/Explosion Resistant Enclosure |
||||||
| B | C | ||||||
| 1 1 |
120 240 |
1 1 |
1 1 |
15-3/8 15-3/8 |
14 14 |
AQ-1011LSSN AQ-1041LSSN |
AQ-1011LSSN-WXP AQ-1041LSSN-WXP |
| 1.5 1.5 |
120 240 |
1 1 |
2 2 |
18-5/8 18-5/8 |
15 15 |
AQ2-1511LSSN AQ2-1541LSSN |
AQ2-1511LSSN-WXP AQ2-1541LSSN-WXP |
| 2 2 |
120 240 |
1 1 |
2 2 |
22-5/8 22-5/8 |
19 19 |
AQ2-2011LSSN AQ2-2041LSSN |
AQ2-2011LSSN-WXP AQ2-2041LSSN-WXP |
| 3 3 |
120 240 |
1 1 |
2 2 |
28-3/8 28-3/8 |
27 27 |
AQ2-3011LSSN AQ2-3041LSSN |
AQ2-3011LSSN-WXP AQ2-3041LSSN-WXP |
- 208V not shown available upon request. Consult factory.
- Heating elements with two rods may be used as dual voltages 120-240V, 240-480V.
- 240V units may be derated for 208V usage with a 25% reduction in wattage.
