CEMLINE CORP. REPLACEMENT ELEMENTS

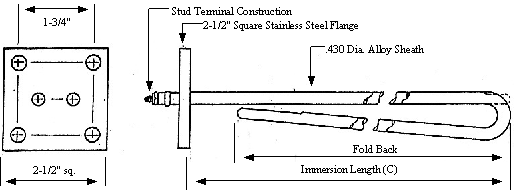

| 2-1/2" Square Flange .430 Dia. Copper Sheath Single Phase |
||||
|---|---|---|---|---|
| Model Number |
Watts | Volts | C | Fold Back |
| 78F-1079-1 | 4500 | 480 | 15-1/2" | YES |
| 78F-1079-2 | 5000 | 480 | 15-1/2" | YES |
| 78F-1079-7 | 4500 | 277 | 15-1/2" | YES |
| 78-1079-14 | 6000 | 480 | 30-1/4" | NO |
| 78F-1079-15 | 4500 | 480 | 30-1/4" | NO |
| 78F-1079-16 | 5000 | 480 | 30-1/4" | NO |
| 78F-1079-18 | 6000 | 208 | 33-1/2" | YES |
| 78F-1079-20 | 6000 | 480 | 27-1/2" | YES |
| 78F-1079-21 | 5000 | 480 | 27-1/2" | YES |
| 78F-1079-25 | 10000 | 480 | 22" | YES |

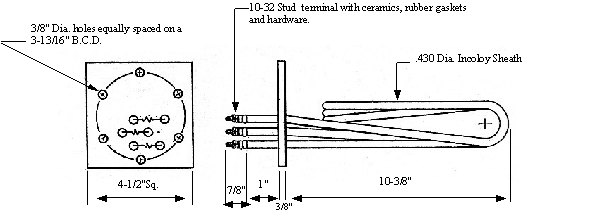

BOILER REPLACEMENT ELEMENTS
| Replacement Model No. |
O.E.M. Part No. |
KW | Volts | Phase | Watts Density |
|---|---|---|---|---|---|
| CES-12051 CES-12053 CES-12033 |
155-554735-009 155-554735-015 155-554735-012 |
12 12 12 |
480 480 346 |
1 3 3 |
77 77 77 |
| CES-18023 CES-18033 CES-18051 CES-18053 |
155-554735-014 155-554735-013 155-554735-011 155-554735-010 155-554735-016 |
18 18 18 18 |
208 346 480 480 |
3 3 1 3 |
115 115 115 115 |
