Alloy Sheath Immersion Element
With 2" N.P.T. Stainless Steel Screw Plug-Welded
- 30 Watts Per Square Inch With Thermowell
- 3/8" ID Stainless Steel Thermowell
- Non-Regulated

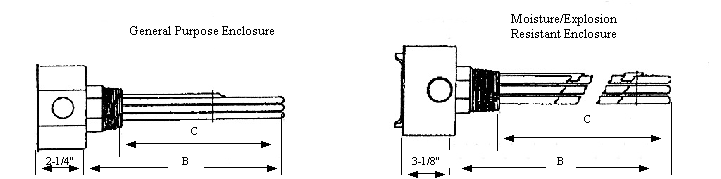

| KW | Volts | Phase | Dimensions (Inches) |
Regulated (60°-250°F) | ||
|---|---|---|---|---|---|---|
| General Purpose Enclosure |
Moisture/Explosion Resistant Enclosure |
|||||
| B | C | |||||
| 3 3 |
240 240 |
1 3 |
15-1/2 15-1/2 |
13-1/2 13-1/2 |
A-3041LSSN A-3043LSSN |
A-3041LSSN-WXP A-3043LSSN-WXP |
| 3 3 |
480 480 |
1 3 |
15-1/2 15-1/2 |
13-1/2 13-1/2 |
A-3051LSSN A-3053LSSN |
A-3051LSSN-WXP A-3053LSSN-WXP |
| 5 5 |
240 240 |
1 3 |
24 24 |
22 22 |
A-5041LSSN A-5043LSSN |
A-5041LSSN-WXP A-5043LSSN-WXP |
| 5 5 |
480 480 |
1 3 |
24 24 |
22 22 |
A-5051LSSN A-5053LSSN |
A-5051LSSN-WXP A-5053LSSN-WXP |
| 7.5 7.5 |
240 240 |
1 3 |
34 34 |
32 32 |
A-7541LSSN A-7543LSSN |
A-7541LSSN-WXP A-7543LSSN-WXP |
| 7.5 7.5 |
480 480 |
1 3 |
34 34 |
32 32 |
A-7551LSSN A-7553LSSN |
A-7551LSSN-WXP A-7553LSSN-WXP |
| 10 10 |
240 240 |
1 3 |
45 45 |
43 43 |
A-10041LSSN A-10043LSSN |
A-10041LSSN-WXP A-10043LSSN-WXP |
| 10 10 |
480 480 |
1 3 |
45 45 |
43 43 |
A-10051LSSN A-10053LSSN |
A-10051LSSN-WXP A-10053LSSN-WXP |
- 208V not shown are available upon request. Consult factory.
- 240V units may be derated for 208V usage with 25% reduction in wattage.
