Alloy Sheath Immersion Element
With 1-1/4" N.P.T. Stainless Steel Screw Plug-Welded
- 30 Watts Per Square Inch With Thermowell
- 3/8" ID Stainless Steel Thermowell
- Single Pole
- Regulated
| KW | Volts | Phase | Rod | Dimensions (Inches) |
Regulated (60°-250°F) | ||
|---|---|---|---|---|---|---|---|

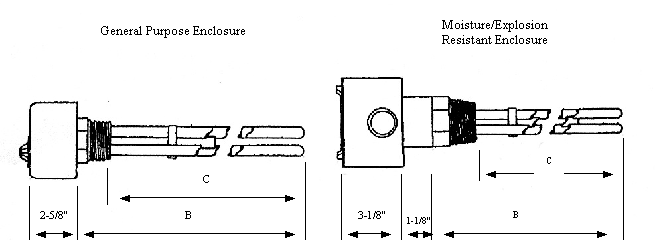

| General Purpose Enclosure |
Moisture/Explosion Resistant Enclosure |
||||||
| B | C | ||||||
| 1 1 |
120 240 |
1 1 |
1 1 |
15-3/8" 15-3/8" |
14" 14" |
EAQ-1011LSSN EAQ-1041LSSN |
EAQ-1011LSSN-WXP EAQ-1041LSSN-WXP |
| 1.5 1.5 |
120 240 |
1 1 |
2 2 |
18-5/8" 18-5/8" |
15" 15" |
EAQ2-1511LSSN EAQ2-1541LSSN |
EAQ2-1511LSSN-WXP EAQ2-1541LSSN-WXP |
| 2 2 |
120 240 |
1 1 |
2 2 |
22-5/8" 22-5/8" |
19" 19" |
EAQ2-2011LSSN EAQ2-2041LSSN |
EAQ2-2011LSSN-WXP EAQ2-2041LSSN-WXP |
| 3 3 |
120 240 |
1 1 |
2 2 |
28-3/8" 28-3/8" |
27" 27" |
EAQ2-3011LSSN EAQ2-3041LSSN |
EAQ2-3011LSSN-WXP EAQ2-3041LSSN-WXP |
Note:
- Standard temperature range is 60°-250°F.
- For temperature range of 30°-110°F: add the suffix T1
- For temperature range of 200°-550°F: add the suffix T5
- Magnetic contactors are required for the following conditions:
- Single phase ampere ratings over 30 amps
- All 208V and 240V, 3 phase applications.
- All 480V single and 3 phase applications.
- 208V not shown are available upon request. Consult factory.
- 240V units may be derated for 208V usage with a 25% reduction in wattage
