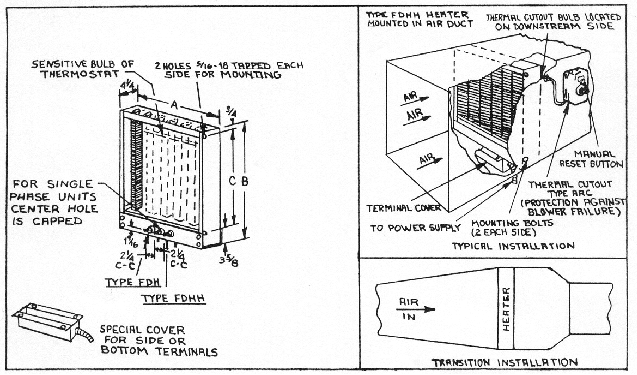

| Catalog Number | Voltage | Phase | KW | # of Circuits |
A | B | C | Sheath Material |
Air Velocity |
Maximum Output Air Temp. |
|
| Iron Sheath* |
Chrome Steel Sheath** |
||||||||||
| FDH-62 FDHH-62 |
FDH-611 FDHH-611 |
120, 208, 240 480 |
1 or 3 | 6 | 1 | 10-3/4 | 15-7/8 | 11-1/12 | IRON | 9 Ft./Sec. 16 Ft./Sec. |
90°F 220°F |
| FDH-122 FDHH-122 |
FDH-1211 FDHH-1211 |
208, 240, 480 | 1 or 3 | 12 | 1 | 15-3/8 | 18-1/2 | 14-1/8 | CHROME STEEL |
4 Ft./ Sec. 9 Ft./Sec. 16 Ft./Sec. |
190°F 330°F 440°F |
| FDH-152 FDHH-152 |
FDH-1511 FDHH-1511 |
208, 240, 480 | 1 or 3 | 15 | 1 | 15-3/8 | 21-5/8 | 17-1/4 | *Iron Sheath for temperatures to 750°F. | ||
| FDH--202 FDHH-202 |
FDH-2011 FDHH-2011 |
208 & 240 480 ONLY |
3 1 or 3 |
20 | 1 | 20-1/8 | 21-5/8 | 17-1/4 | **Chrome Steel Sheath for temperatures to 950°F. | ||
| FDH-252 FDHH-252 |
FDH-2511 FDHH-2511 |
208 & 240 480 ONLY |
3 1 or 3 |
25 | 1 | 20-1/8 | 26-1/8 | 21-3/4 | |||
| FDH-402 FDHH-402 |
FDH-4011 FDHH-4011 |
208 & 240 480 ONLY |
3 1 or 3 |
40 | 2 | 29-1/2 | 27-3/8 | 23 | |||
| FDH-502 FDHH-502 |
FDH-5011 FDHH-5011 |
208 & 240 480 ONLY |
3 1 or 3 |
50 | 2 | 29-1/2 | 33-1/8 | 28-3/4 | |||
| FDH-752 FDHH-752 |
FDH-7511 FDHH-7511 |
208 & 240 480 ONLY |
3 1 or 3 |
75 | 3 | 44-7/16 | 42-1/8 | 37-3/4 | |||
| FDH-1002 FDHH-1002 |
FDH-10021 FDHH-10021 |
208 & 240 480 ONLY |
3 1 or 3 |
100 | 3 | 44-7/16 | 47-1/2 | 43-1/8 | |||
