TERMINALS: TWO POST TERMINALS ALONG LENGTH ON ONE END.
| MODEL NO. | WATTS | WATT DENSITY |

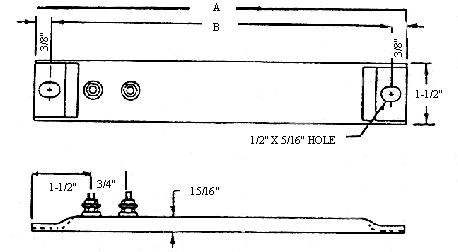

A TOTAL LENGTH IN. |
B MOUNTING HOLE DIM IN. |
|
| 120V | 240V | ||||
| SCH-011-6L | SCH-014-6L | 100 | 11 | 6-7/8 | 6 |
| SCH-0171-6L | SCH-0174-6L | 175 | 12 | 8-3/8 | 7-1/2 |
| SCH-0201-9L | SCH-0204-9L | 200 | 12 | 8-7/8 | 8 |
| SCH-0351-11L | SCH-0354-11L | 350 | 14 | 11-3/8 | 10-1/2 |
| SCH-0401-13L | SCH-0404-13L | 400 | 13 | 12-7/8 | 12 |
| SCH-0501-15L | SCH-0504-15L | 500 | 13 | 14-7/8 | 14 |
| SCH-0551-16L | SCH-0554-16L | 550 | 13 | 16-1/8 | 15-1/4 |
| SCH-0751-19L | SCH-0754-19L | 750 | 14 | 18-3/4 | 17-7/8 |
| SCH-0851-20L | SCH-0854-20L | 850 | 15 | 20-3/8 | 19-1/2 |
| SCH-0901-22L | SCH-0904-22L | 900 | 14 | 21-7/8 | 21 |
| SCH-1001-24L | SCH-1004-24L | 1000 | 14 | 24-5/8 | 23-3/4 |
| SCH-1101-25L | SCH-1104-25L | 1100 | 14 | 25-3/8 | 24-1/2 |
| SCH-1301-28L | SCH-1304-28L | 1300 | 15 | 28-1/2 | 27-5/8 |
| SCH-1401-31L | SCH-1404-31L | 1400 | 14 | 31-3/8 | 30-1/2 |
| SCH-1601-37L | SCH-1604-37L | 1600 | 14 | 36-7/8 | 36 |
| SCH-1801-39L | SCH-1804-39L | 1800 | 14 | 39-3/8 | 38-1/2 |
| SCH-2001-43L | SCH-2004-43L | 2000 | 14 | 43-3/8 | 42-1/2 |
| SCH-2251-49L | SCH-2254-49L | 2250 | 14 | 48-7/8 | 48 |
| SCH-2501-55L | SCH-2504-55L | 2500 | 14 | 54-7/8 | 54 |
| SCH-3001-65L | SCH-3004-65L | 3000 | 14 | 64-7/8 | 64 |
| SCH-3501-73L | SCH-3504-73L | 3500 | 14 | 72-7/8 | 72 |
