TWO TERMINALS AT ONE END |
ALUMINIZED STEEL SHEATH |
HIGH TEMPERATURE 1200°F |
|||||||

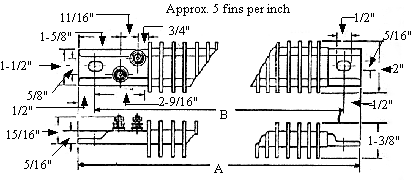

| MODEL NO. | A TOTAL LENGTH IN. |
B MOUNTING HOLE DIM. IN. |
WATTS | VOLTS | WATTS SQ. IN. |
CROSS REFERENCE | |||
| BRYANT | CHROMALOX | G.E. | |||||||
| FSTH-600-L-11 FSTH-724-L-11 FSTH-725-H-11 |
10-1/2 10-1/2 10-1/2 |
9-1/2 9-1/2 9-1/2 |
600 725 725 |
120 120 240 |
24.5 29.7 29.7 |
OTF-100 OTF-100 |
FS-2001 FS-2002 |
||
| FSTH-900-L-12 FSTH-900-H-12 |
11-3/4 11-3/4 |
10-3/4 10-3/4 |
900 900 |
120 240 |
31 31 |
OTF-120 |
FS-2011 FS-2012 |
||
| FSTH-1100-L-14 FSTH-1100-H-14 |
14 14 |
13 13 |
1100 1100 |
120 240 |
29.3 29.3 |
OTF-140 OTF-140 |
FS-2021 FS-2022 |
||
| FSTH-1250-L-15 FSTH-1250-H-15 |
15 15 |
14 14 |
1250 1250 |
120 240 |
30.3 30.3 |
OTF-150 |
FS-2031 FS-2032 |
||
| FSTH-1550-L-18 FSTH-1550-H-18 |
17-3/4 17-3/4 |
16-3/4 16-3/4 |
1550 1550 |
120 240 |
30.1 30.1 |
OTF-180 |
FS-2041 FS-2042 |
||
| FSTH-1700-L-20 FSTH-1700-H-20 |
19-1/2 19-1/2 |
18-1/2 18-1/2 |
1700 1700 |
120 240 |
29.2 29.2 |
OTF-190 |
FS-2051 FS-2052 |
||
| FSTH-1900-L-21 FSTH-1900-H-21 |
21 21 |
20 20 |
1900 1900 |
120 240 |
29.8 29.8 |
OTF-210 |
FS-2061 FS-2062 |
||
| FSTH-2200-L-24 FSTH-2200-H-24 |
23-1/2 23-1/2 |
22-1/2 22-1/2 |
2200 2200 |
120 240 |
30.1 30.1 |
OTF-240 |
FS-2071 FS-2072 |
||
| FSTH-2400-H-26 | 25-1/2 | 24-1/2 | 2400 | 240 | 29.8 | SEF-250 | FS-2142 | ||
| FSTH-2500-H-27 | 26-3/4 | 25-3/4 | 2500 | 240 | 29.3 | SEF-260 | FS-2082 | ||
| FSTH-2800-H-30 | 30-1/4 | 29-1/4 | 2800 | 240 | 28.4 | SEF-300 | FS-2092 | ||
| FSTH-3150-H-34 | 33-1/2 | 32-1/2 | 3150 | 240 | 28.5 | SEF-330 | FS-2102 | ||
| FSTH-3450-H-36 | 35-3/4 | 34-3/4 | 3450 | 240 | 29 | SEF-360 | FS-2112 | ||
| FSTH-3750-H-39 | 38-1/2 | 37-1/2 | 3750 | 240 | 28.6 | SEF-380 | FS-2122 | ||
| FSTH-4150-H-43 | 42-1/2 | 41-1/2 | 4150 | 240 | 28.9 | SEF-430 | FS-2132 | ||
Note:
