CI-2002 Commercial Industrial Catalog

STRIP HEATERS

ONE TERMINAL AT EACH END			ALUMINIZED STEEL SHEATH				LOW TEMPERATURE 750°F

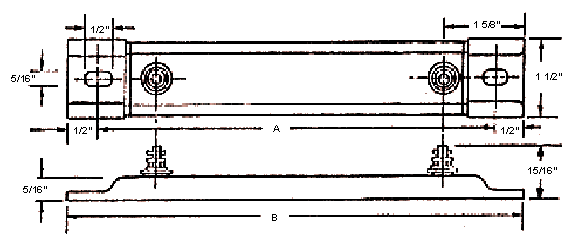

MODEL NO.		A TOTAL LENGTH IN.	B MOUNTING HOLE DIM. IN.	WATTS	VOLTS	WATTS SQ. IN.	CROSS REFERENCE
MODEL NO.		A TOTAL LENGTH IN.	B MOUNTING HOLE DIM. IN.	WATTS	VOLTS	WATTS SQ. IN.	BRYANT	CHROMALOX	G.E.
SSL-150-L-8 SSL-150-H-8	* *	8 8	7 7	150 150	120 240	10 10	1085-739 1085-746	S-815 S-815	SD-1021 SD-1032
SSL-200-L-10 SSL-200-H-10	* *	9-1/2 9-1/2	8-1/2 8-1/2	200 200	120 240	9.7 9.7		S-920 S-920	SD-1041 SD-1052
SSL-250-L-12 SSL-250-H-12	* *	12 12	11 11	250 250	120 240	8.6 8.6	1085-740 1085-747	S-1225 S-1225	SD-1061 SD-1072
SSL-300-L-14 SSL-300-H-14	* *	14 14	13 13	300 300	120 240	8 8		S-1430 S-1430	SD-1131 SD-1142
SSL-325-L-15 SSL-325-H-15	* *	15 15	14 14	325 325	120 240	7.9 7.9		S-1532 S-1532	SD-1151 SD-1162
SSL-350-L-18 SSL-350-H-18 SSL-375-L-18 SSL-375-H-18 SSL-500-L-18 SSL-500-H-18	* * * * * *	18 18 18 18 18 18	17 17 17 17 17 17	350 350 375 375 500 500	120 240 120 240 120 240	7 7 7.5 7.5 10 10	1085-741 1085-748	S-1837 S-1837 S-1850 S-1850	SD-1171 SD-1182 SD-1191 SD-1202 SD-1211 SD-1222
SSL-500-L-20 SSL-500-H-20	* *	19-1/2 19-1/2	18-1/2 18-1/2	500 500	120 240	8.8 8.8		S-1950 S-1950	SD-1231 SD-1242
SSL-500-L-21 SSL-500-H-21	* *	21 21	20 20	500 500	120 240	8 8		S-2050 S-2050	SD-1291 SD-1302
SSL-250-L-24 SSL-250-H-24 SSL-500-L-24 SSL-500-H-24	* * * *	23-1/2 23-1/2 23-1/2 23-1/2	22-1/2 22-1/2 22-1/2 22-1/2	250 250 500 500	120 240 120 240	3.5 3.5 7 7	1085-742 1085-749	S-2425 S-2425 S-2450 S-2450	SD-1311 SD-1322 SD-1331 SD-1342
SSL-750-L-26 SSL-750-H-26	* *	25-1/2 25-1/2	24-1/2 24-1/2	750 750	120 240	9.5 9.5		S-2575 S-2575	SD-1401 SD-1412
SSL-700-L-27 SSL-700-H-27	* *	27 27	26 26	700 700	120 240	8.3 8.3			SD-1421 SD-1432
SSL-750-L-30 SSL-750-H-30	* *	30-1/4 30-1/4	29-1/4 29-1/4	750 750	120 240	7.7 7.7	1085-743 1085-750		SD-1441 SD-1452
SSL-750-L-33 SSL-750-H-33	* *	33-1/2 33-1/2	32-1/2 32-1/2	750 750	120 240	6.9 6.9		S-3375	SD-1461 SD-1472
SSL-750-L-36 SSL-750-H-36 SSL-1000-L-36 SSL-1000-H-36	* * * *	35-1/2 35-1/2 35-3/4 35-3/4	34-1/2 34-1/2 34-3/4 34-3/4	750 750 1000 1000	120 240 120 240	6 6 8.4 8.4	1085-182 1085-183 1085-744 1085-751	S-3610 S-3610	SD-1481 SD-1492
SSL-1000-L-39 SSL-1000-H-39	* *	38-1/2 38-1/2	37-1/2 37-1/2	1000 1000	120 240	7.8 7.8		S-3810	SD-1501 SD-1512
SSL-1250-L-43 SSL-1250-H-43	* *	42-1/4 42-1/4	41-1/4 41-1/4	1250 1250	120 240	8.8 8.8	1085-745 1085-752	S-4312 S-4312	SD-1521 SD-1532

STRIP HEATERS
