STRIP HEATERS
STH Series-Continued From Previous Page

TWO TERMINALS AT ONE END			CHROME STEEL SHEATH					HIGH TEMPERATURE 1200°F
MODEL NO.		A TOTAL LENGTH IN.	B MOUNTING HOLE DIM. IN.	WATTS	VOLTS	WATTS SQ. IN.	CROSS REFERENCE
MODEL NO.		A TOTAL LENGTH IN.	B MOUNTING HOLE DIM. IN.	WATTS	VOLTS	WATTS SQ. IN.	BRYANT	CHROMALOX	G.E.
STH-750-H-30 STH-1000-L-30 STH-1000-H-30	* * *	30-1/4 30-1/4 30-1/4	29-1/4 29-1/4 29-1/4	750 1000 1000	240 120 240	7.6 10.1 10.1	1085-757 1085-764	OT-3007 OT-3001 OT-3001	SS-2482 SS-2491 SS-2502
STH-750-L-34 STH-750-H-34	* *	33-1/2 33-1/2	32-1/2 32-1/2	750 750	120 240	6.8 6.8		OT-3307 OT-3307	SS-2511 SS-2522
STH-1000-H-36 STH-1500-L-36 STH-1500-H-36	*	35-3/4 35-3/4 35-3/4	34-3/4 34-3/4 34-3/4	1000 1500 1500	240 120 240	8.4 12.6 12.6	1085-758 1085-765	OT-3601 OT-3601	SS-2532 SS-2541 SS-2552
STH-1000-L-39 STH-1000-H-39	* *	38-1/2 38-1/2	37-1/2 37-1/2	1000 1000	120 240	7.7 7.7		OT-3801 OT-3801	SS-2561 SS-2572
STH-1250-L-43 STH-1250-H-43 STH-1500-L-43 STH-1500-H-43	* * * *	42-1/4 42-1/4 42-1/4 42-1/4	41-1/4 41-1/4 41-1/4 41-1/4	1250 1250 1500 1500	120 240 120 240	8.7 8.7 10.4 10.4	1085-759 1085-766	OT-4315 OT-4315	SS-2601 SS-2612 SS-2621 SS-2632

* UL Recognized Component

Therm Coil Mfg. does not warrant strip heaters if secondary insulation is not used on 300 volts or above
Three terminal Strip Heaters available– consult factory.

STRIP HEATERS

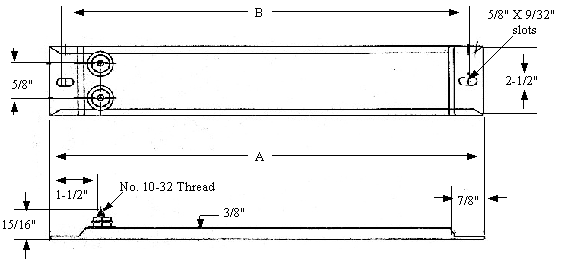

2-1/2" Wide

TWO TERMINALS AT ONE END

CHROME STEEL SHEATH

HIGH TERMPERATUARE 1200°F

MODEL NO.	A TOTAL LENGTH IN.	B MOUNTING HOLE DIM. IN.	WATTS	VOLTS
STHW-500-L-6 STHW-500-H-6	6-1/2 6-1/2	5-1/2 5-1/2	500 500	120 240
STHW-600-L-8 STHW-600-H-8	8-1/2 8-1/2	7-1/2 7-1/2	600 600	120 240
STHW-1000-L-15 STHW-1000-H-15	15-1/4 15-1/4	14-1/4 14-1/4	1000 1000	120 240

Note:

2-1/2" Wide Strip Heaters are special order items.
Please allow 3-6 weeks for delivery.
Additional wattages and voltages are available upon request.
Therm Coil Mfg. does not warrant strip heaters if secondary insulation is not used on 300 volts or above.
Three terminal strip heaters available-consult factory.
