| STEEL SHEATH ELEMENT 22 WATTS PER SQUARE INCH |
|||||||||||
| MODEL NO. | KW 1 or 3 PHASE |
GAL. PER Hr. 100°F RISE |

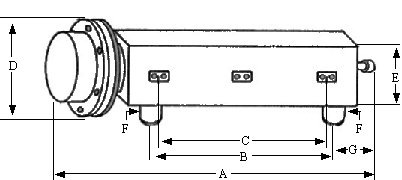

DIMENSIONS (INCHES) | ||||||||
| 208V | 240V | 480V | A | B | C | D | E | F | G | ||
| SJS-3023-3 SJS-6023-3 SJS-9023-3 |
SJS-3043-3 SJS-6043-3 SJS-9043-3 |
SJS-3053-3 SJS-6053-3 SJS-9053-3 |
3 6 9 |
24 48 72 |
31 51 63-1/2 |
16-1/2 36-1/2 49 |
16-1/2 26-1/2 39 |
7-1/2 7-1/2 7-1/2 |
6-1/8 6-1/8 6-1/8 |
1" NPT 1" NPT 1" NPT |
6 6 6 |
| SJS-12026-5 SJS-15026-5 SJS-18026-5 |
SJS-12046-5 SJS-15046-5 SJS-18046-5 |
SJS-12056-5 SJS-15056-5 SJS-18056-5 |
12 15 18 |
96 120 144 |
52 57 64-1/2 |
36-1/2 41-1/2 49 |
25 25 25 |
10 10 10 |
8-3/16 8-3/16 8-3/16 |
2" NPT 2" NPT 2" NPT |
7 7 7 |
| SJS-20026-5 SJS-25029-5 SJS-30029-5 |
SJS-20046-5 SJS-25049-5 SJS-30049-5 |
SJS-20056-5 SJS-25059-5 SJS-30059-5 |
20 25 30 |
160 200 240 |
71-1/2 64-1/2 71-1/2 |
56 49 56 |
25 25 25 |
10 10 10 |
8-3/16 8-3/16 8-3/16 |
2" NPT 2" NPT 2" NPT |
7 7 7 |
| SJS-300218-8 |
SJS-300418-8 SJS-400412-5 SJS-400418-8 |
SJS-300518-8 SJS-400512-5 SJS-400518-8 |
30 40 40 |
240 320 320 |
44-1/8 71-1/2 53-1/8 |
27-1/2 56 36-1/2 |
29-3/16 42 36-3/16 |
13-1/2 10 13-1/2 |
11-3/4 8-3/16 11-3/4 |
2-1/2"NPT 2" NPT 2-1/2"NPT |
8 7 8 |
| |
SJS-500418-8 SJS-600418-8 SJS-700418-8 SJS-800418-8 |
SJS-500518-8 SJS-600518-8 SJS-700518-8 SJS-800518-8 |
50 60 70 80 |
400 480 560 640 |
65-5/8 72-5/8 81-5/8 91-1/8 |
49 56 65 74-1/2 |
43-13/16 53-5/16 62-5/16 72-5/16 |
13-1/2 13-1/2 13-1/2 13-1/2 |
11-3/4 11-3/4 11-3/4 11-3/4 |
2-1/2"NPT 2-1/2"NPT 2-1/2"NPT 2-1/2"NPT |
8 8 8 8 |
| STEEL SHEATH ELEMENTS 15 WATTS PER SQUARE INCH |
|||||||||||
| MODEL NO. | KW 1 or 3 PHASE |
GAL. PER Hr. 100°F RISE |
DIMENSIONS (INCHES) | ||||||||
| 208V | 240V | 480V | A | B | C | D | E | F | G | ||
| SJS-3023-3L SJS-5023-3L SJS-8026-5L |
SJS-3043-3L SJS-5043-3L SJS-8046-5L |
SJS-3053-3L SJS-5053-3L SJS-8056-5L |
3 5 8 |
24 40 64 |
45 65-1/2 56-1/2 |
30-1/2 51 41 |
16-1/2 26-1/2 25 |
7-1/2 7-1/2 10 |
6-1/8 6-1/8 8-3/16 |
1" NPT 1" NPT 2" NPT |
6 6 7 |
| SJS-10026-5L SJS-12029-5L SJS-15029-5L |
SJS-10046-5L SJS-12049-5L SJS-15049-5L |
SJS-10056-5L SJS-12059-5L SJS-15059-5L |
10 12 15 |
80 96 120 |
66-1/2 56-1/2 66-1/2 |
51 41 51 |
25 30 25 |
10 10 10 |
8-3/16 8-3/16 8-3/16 |
2" NPT 2" NPT 2" NPT |
7 7 7 |
| SJS-180212-5L SJS-200212-5L SJS-250218-8L SJS-400218-8L |
SJS-180412-5L SJS-200412-5L SJS-250418-8L SJS-400418-8L |
SJS-180512-5L SJS-200512-5L SJS-250518-8L SJS-400518-8L |
18 20 25 40 |
144 160 200 320 |
61-1/2 66-1/2 59-5/8 85-1/8 |
46 51 43 68-1/2 |
25 25 36-3/16 62-5/16 |
10 10 15-1/4 15-1/4 |
8-3/16 8-3/16 11-3/4 11-3/4 |
2" NPT 2" NPT 2-1/2"NPT 2-1/2"NPT |
7 7 8 8 |
Note:
