| COPPER SHEATH ELEMENT 60 WATTS PER SQUARE INCH |
|||||||||||
| MODEL NO. | KW 1 or 3 PHASE |
GAL. PER Hr. 100°F RISE |

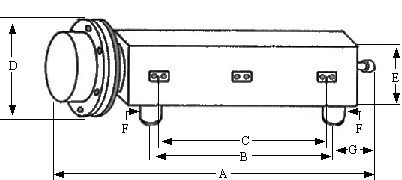

DIMENSIONS (INCHES) | ||||||||
| 208V | 240V | 480V | A | B | C | D | E | F | G | ||
| SJC-3023-3 SJC-6023-3 SJC-9023-3 |
SJC-3043-3 SJC-6043-3 SJC-9043-3 |
SJC-3053-3 SJC-6053-3 SJC-9053-3 |
3 6 9 |
12 24 36 |
31 31 31 |
16-1/2 16-1/2 16-1/2 |
16-1/2 16-1/2 16-1/2 |
7-1/2 7-1/2 7-1/2 |
6-1/8 6-1/8 6-1/8 |
1" NPT 1" NPT 1" NPT |
6 6 6 |
| SJC-12023-3 SJC-15023-3 SJC-18023-3 |
SJC-12043-3 SJC-15043-3 SJC-18043-3 |
SJC-12053-3 SJC-15053-3 SJC-18053-3 |
12 15 18 |
48 60 72 |
51 51 51 |
36-1/2 36-1/2 36-1/2 |
26-1/2 39 39 |
7-1/2 7-1/2 7-1/2 |
6-1/8 6-1/8 6-1/8 |
1" NPT 1" NPT 1" NPT |
6 6 6 |
| SJC-20023-3 SJC-25023-3 SJC-25026-5 |
SJC-20043-3 SJC-25043-3 SJC-25046-5 |
SJC-20053-3 SJC-25053-3 SJC-25056-5 |
20 25 25 |
80 100 100 |
54 65-1/2 55 |
39-1/2 51 39-1/2 |
39 42 25 |
7-1/2 7-1/2 10 |
6-1/8 6-1/8 8-3/16 |
1" NPT 1" NPT 2" NPT |
6 6 7 |
| SJC-30026-5 |
SJC-30046-5 SJC-40046-5 SJC-50046-5 |
SJC-30056-5 SJC-40056-5 SJC-50056-5 |
30 40 50 |
120 160 200 |
55 55 66-1/2 |
39-1/2 39-1/2 51 |
25 25 25 |
10 10 10 |
8-3/16 8-3/16 8-3/16 |
2" NPT 2" NPT 2" NPT |
7 7 7 |
| |
SJC-500418-8 SJC-60049-5 SJC-75049-5 |
SJC-500518-8 SJC-60059-5 SJC-75059-5 |
50 60 75 |
200 240 300 |
56-1/8 55 66-1/2 |
39-1/2 39-1/2 51 |
21-3/16 30 42 |
13-1/2 10 10 |
15 8-3/16 8-3/16 |
2-1/2" NPT 2" NPT 2" NPT |
8 7 7 |
| |
SJC-750418-8 SJC-100412-5 SJC-1000418-8 |
SJC-750518-8 SJC-1000512-5 SJC-1000518-8 |
75 100 100 |
300 400 400 |
50-1/8 66-1/2 50-1/8 |
33-1/2 51 33-1/2 |
29-3/16 42 36-3/16 |
13-1/2 10 13-1/2 |
15 8-3/16 15 |
2-1/2" NPT 2" NPT 2-1/2" NPT |
8 7 8 |
| |
SJC-1250418-8 SJC-1500418-8 SJC-1750418-8 SJC-2000418-8 |
SJC-1250518-8 SJC-1500518-8 SJC-1750518-8 SJC-2000518-8 |
125 150 175 200 |
500 600 700 800 |
67-5/8 67-5/8 84-5/8 84-5/8 |
51 51 68 68 |
43-13/16 53-5/16 62-5/16 72-5/16 |
13-1/2 13-1/2 13-1/2 13-1/2 |
15 15 15 15 |
2-1/2" NPT 2-1/2" NPT 2-1/2" NPT 2-1/2" NPT |
8 8 8 8 |
Note:
