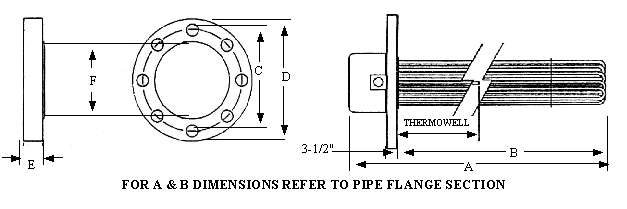

PIPE FLANGE HEATING ELEMENTS

  DIMENSIONS IN INCHES
  D E F C
PIPE SIZE OUTSIDE
DIAM. 		THICKNESS DIAM. OF
RAISED
FACE 		BOLT
CIRCLE 		NO. OF
HOLES 		DIAM.
OF
HOLES 		SIZE
BOLT
150# TEST
3
5
6
8
10
12
7 -1/2
10
11
13 -1/2
16
19
15/16
15/16
1
1- 1/8
1 -3/16
1- 1/4
5
7 -5/16
8 -1/2
10 -5/8
12 -3/4
15
6
8 -1/2
9 -1/2
11 -3/4
14 -1/4
17
4
8
8
8
12
12
3/4
7/8
7/8
7/8
1
1
5/8
3/4
3/4
3/4
7/8
7/8
300# TEST
3
5
6
8
10
12
8 -1/4
11
12 -1/2
15
17 -1/2
20 -1/2
1 -1/8
1 -3/8
1 -7/16
1 -5/8
1 -7/8
2
5
7 -5/16
8 -1/2
10 -5/8
12 -3/4
15
6 -5/8
9 -1/4
10 -5/8
13
15 -1/4
17 -3/4
8
8
12
12
16
16
7/8
7/8
7/8
1
1 -1/8
1 -1/4
3/4
3/4
3/4
7/8
1
1 -1/8

  DIMENSIONS IN INCHES
  MOISTURE RESISTANT
(WP) ENCLOSURE 		EXPLOSION RESISTANT
(XP) ENCLOSURE
FLANGE SIZE J K J K
3
5
6
8
10 		5- 3/8
3 -9/16
5 -11/32
5 -11/16
6- 1/2 		4- 1/4
6 -5/8
7 -1/4
10
12 		5- 3/8
6 -15/16
8- 9/16
10
10 		4- 1/4
5 -3/4
8
9 -1/2
12
