Enclosure with and without thermostat controls. Thermostat control units have magnetic contactor when load is over 25 amps and range of 60°-250°F 480V rated heaters require special control packages. Contact factory. Available in copper, alloy and steel sheath with non-heating riser.

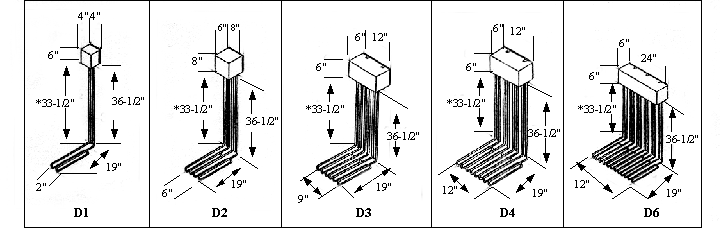

NOTE: Non-Heated Riser is 33-1/2"
| COPPER SHEATH HEATER | |||||||
| MODEL NO. WITHOUT THERMOSTAT |
MODEL NO. WITH THERMOSTAT |
KW 120V |
KW 208V |
KW 240V |
KW 480V |
PHASE | STYLE |
| DC-4041-WP DC-8041-WP DC-12043-WP DC-16041-WP DC-24043-WP |
DCG-4041-WP DCGM-8041-WP DCGM-12043-WP DCGM-16041-WP DCGM-24043-WP |
1 2 |
3 6 8 12 18 |
4 8 12 16 24 |
8+ 16+ 24+ |
1 1 3 1 3 |
D1 D2 D3 D4 D6 |
| ALLOY SHEATH HEATER | |||||||
| MODEL NO. WITHOUT THERMOSTAT |
MODEL NO. WITH THERMOSTAT |
KW 120V |
KW 208V |
KW 240V |
KW 480V |
PHASE | STYLE |
| DA-4041-WP DA-8041-WP DA-12043-WP DA-16041-WP DA-24043-WP |
DAG-4041-WP DAGM-8041-WP DAGM-12043-WP DAGM-16041-WP DAGM-24043-WP |
1 2 |
3 6 8 12 18 |
4 8 12 16 24 |
8+ 16+ 24+ |
1 1 3 1 3 |
D1 D2 D3 D4 D6 |
| *Chrome plating and passivating are available upon request from your local sales office. | |||||||
| STEEL SHEATH HEATER | |||||||
| MODEL NO. WITHOUT THERMOSTAT |
MODEL NO. WITH THERMOSTAT |
KW 120V |
KW 208V |
KW 240V |
KW 480V |
PHASE | STYLE |
| DS-4041-WP DS-8041-WP DS-12043-WP DS-16041-WP DS-24043-WP |
DSG-4041-WP DSGM-8041-WP DSGM-12043-WP DSGM-16041-WP DSGM-24043-WP |
1 2 |
3 6 8 12 18 |
4 8 12 16 24 |
8+ 16+ 24+ |
1 1 3 1 3 |
D1 D2 D3 D4 D6 |
| +Note: To order these elements in 480V, Add the suffix V5 to the part number. Example: DS-8041V5-WP |
|||||||
