DR
AUTOMATIC DRUM HEATER

FEATURES

  • Fits through 2-Inch Bung Opening
  • Cold Riser Confines All Heat
    To Formed Section For Maximum Efficiency.
  • Calibrated Thermostat (60-250)
    ...Can Be Replaced Separatley
  • Pilot Indicates Desired Temperature Has Been Reached.
  • Manual reset Button Protects Against
    Overheating And Burn-Out.

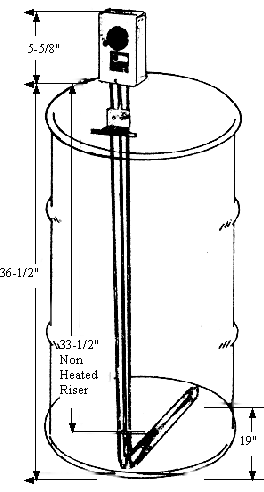

The DR unit is designed for insertion
directly into a 55-gallon drum,
vat or other suitable storage container,
for melting coconut or other oils, lard and
other fats, tar. The unit is available with
stainless steel,copper or steel elements.
A stainless steel mounting bracket is supplied
for mounting on drum.

The control box houses a calibrated thermostat
providing a range of temperature settings from 60-250.
The thermostat can be replaced without replacing the
entire unit. A pilot light indicates when desired
temperature has been reached. A thermal cut-out
and reset button protects against over-heating and
burn-out due to low liquid level or non-immersion.

For special voltage and wattage or specials other than
listed above, consult with factory.

    WATT DENSITY HEATING CAPACITY
(PETROLEUM PRODUCTS)
REPLACEMENT
ELEMENTS ONLY
    11.5 34.5 46 PHASE Time to Raise
400 lbs. on 50
Rise F. AT 240V.
Time to Raise
400 lbs. On 100
Rise F. at 240V
MODEL
NO.
MODEL
NO.
SHEATH
MATERIAL
KW at
120V
KW at
208V
KW at
240V
*DRA-4041
DRC-4041
DRS-4041
ALLOY
COPPER
STEEL
1
1
1
3
3
3
4
4
4
1
1
1
1 HOUR
1 HOUR
1 HOUR
2 HOURS
2 HOURS
2 HOURS
DRA-4041E
DRC-4041E
DRS-4041E
*CHROME PLATING AND PASSIVATING ARE AVAILABLE UPON REQUEST.
