Tyson Metal

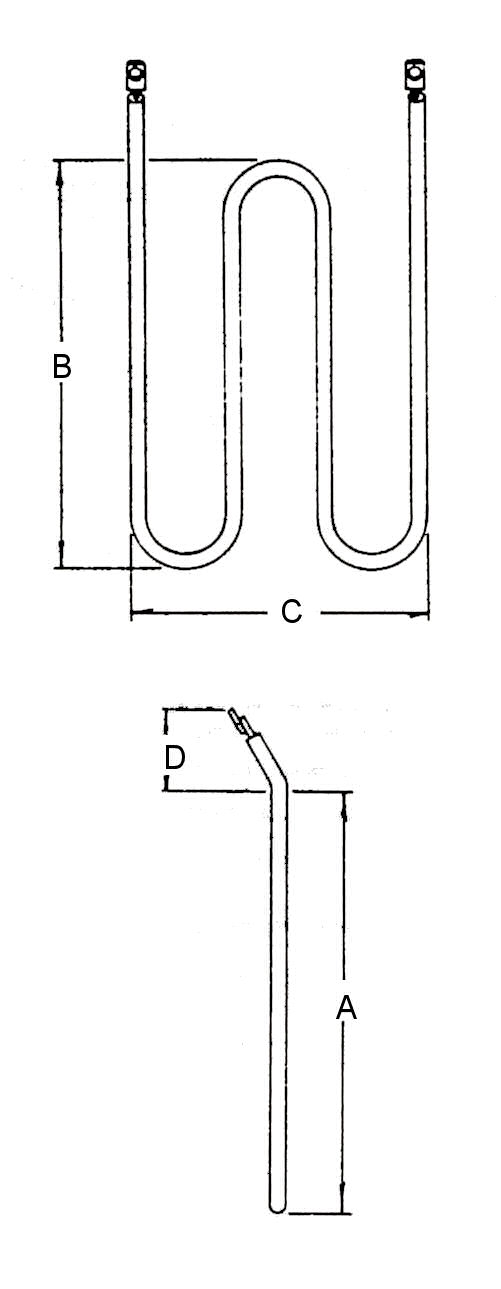

| Therm-Coil Drawing Number |
Therm-Coil Model Number |
Watts | Volts | Rod Dia. | A | B | C | D |
|---|---|---|---|---|---|---|---|---|
| CHTM-1011-32 | 1000 | 120 | .315 | 32 5/32" | 30 5/16" | 13 13/16" | 1 3/4" | |
| CHTM-1011-32-1 | 1000 | 120 | .315 | 32 5/32" | 30 5/16" | 18 5/16" | 1 3/4" | |
| CHTM-1051-15 | 1000 | 480 | .430 | 15 1/32" | 13 1/8" | 7 15/16" | 1 3/4" | |
| CHTM-721-15 | 750 | 208 | .315 | 14 31/32" | 13" | 7 13/16" | 1 3/4" | |
| CHTM-1521-15 | 1500 | 208 | .315 | 14 31/32" | 13" | 7 13/16" | 1 3/4" | |
| CHTM-1011-15 | 1000 | 120 | .315 | 14 31/32" | 13" | 7 13/16" | 1 3/4" | |
| CHTM-1021-15 | 1000 | 208 | .315 | 14 31/32" | 13" | 7 13/16" | 1 3/4" |
