Cleveland Range
| Therm-Coil Drawing Number |
Therm-Coil Model Number |
Cleveland Range Model Number |

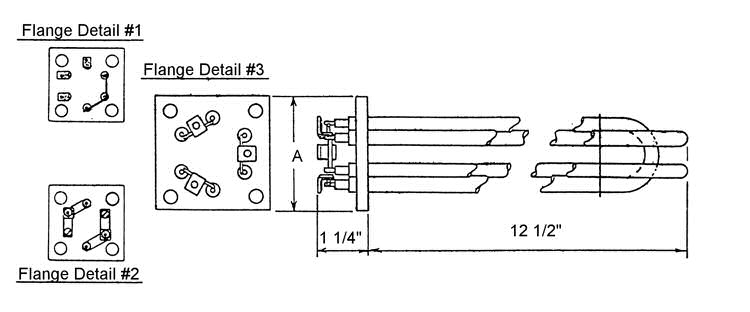

Watts | Volts | "A" Dim | Flange Detail |
|---|---|---|---|---|---|---|
| CR3-9023 | C-08235 | 9000 | 208 | #3 -3Ph Δ | ||
| CR3-9043 | C-08236 | 9000 | 220 / 240 | #3 -3Ph Δ | ||
| CR3-9053 | C-08237 | 9000 | 440 / 480 | #3 -3Ph Δ | ||
| CR2-11023 | C-08175 | 11000 | 208 / 220 | #3 -3Ph Δ | ||
| CR2-11043 | C-08176 | 11000 | 230 / 240 | #3 -3Ph Δ | ||
| CR2-11053 | C-08177 | 11000 | 440 / 480 | #3 -3Ph Δ | ||
| CR3-12023 | C-08165 | 12000 | 208 / 240 | #3 -3Ph Δ | ||
| CR3-12043 | C-08166 | 12000 | 230 / 240 | #3 -3Ph Δ | ||
| CR3-12053 | C-08167 | 12000 | 440 / 480 | #3 -3Ph Δ | ||
| CR3-12033 | C-08197 | 12000 | 220 / 380 | #1 - 3Ph Y |
