Alloy Sheath Immersion Element
With 2-1/2" N.P.T. Stainless Steel Screw Plug-Welded
- 30 Watts Per Square Inch With Thermowell
- 3/8" ID Stainless Steel Thermowell
- Non-Regulated

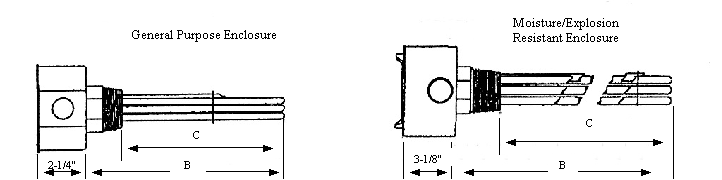

| KW | Volts | Phase | Dimensions (Inches) |
Non-Regulated | ||
| General Purpose Enclosure |
Moisture/Explosion Resistant Enclosure |
|||||
| B | C | |||||
| 3 3 |
240 240 |
1 3 |
17-1/8 17-1/8 |
15 15 |
AA-3041LSSN AA-3043LSSN |
AA-3041LSSN-WXP AA-3043LSSN-WXP |
| 3 3 |
480 480 |
1 3 |
17-1/8 17-1/8 |
15 15 |
AA-3051LSSN AA-3053LSSN |
AA-3051LSSN-WXP AA-3053LSSN-WXP |
| 5 5 |
240 240 |
1 3 |
22-1/8 22-1/8 |
20 20 |
AA-5041LSSN AA-5043LSSN |
AA-5041LSSN-WXP AA-5043LSSN-WXP |
| 5 5 |
480 480 |
1 3 |
22-1/8 22-1/8 |
20 20 |
AA-5051LSSN AA-5053LSSN |
AA-5051LSSN-WXP AA-5053LSSN-WXP |
| 7.5 7.5 |
240 240 |
1 3 |
36-1/8 36-1/8 |
34 34 |
AA-7541LSSN AA-7543LSSN |
AA-7541LSSN-WXP AA-7543LSSN-WXP |
| 7.5 7.5 |
480 480 |
1 3 |
36-1/8 36-1/8 |
34 34 |
AA-7551LSSN AA-7553LSSN |
AA-7551LSSN-WXP AA-7553LSSN-WXP |
| 10 10 |
240 240 |
1 3 |
42-1/8 42-1/8 |
40 40 |
AA-10041LSSN AA-10043LSSN |
AA-10041LSSN-WXP AA-10043LSSN-WXP |
| 10 10 |
480 480 |
1 3 |
42-1/8 42-1/8 |
40 40 |
AA-10051LSSN AA-10053LSSN |
AA-10051LSSN-WXP AA-10053LSSN-WXP |
- 208V not shown are available upon request. Consult factory.
- 240V units may be derated for 208V usage with 25% reduction in wattage.
